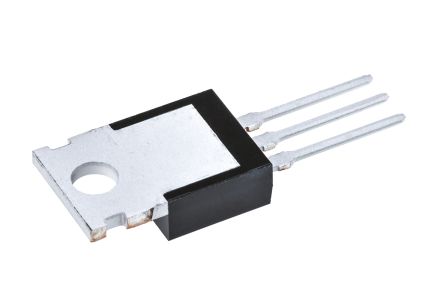

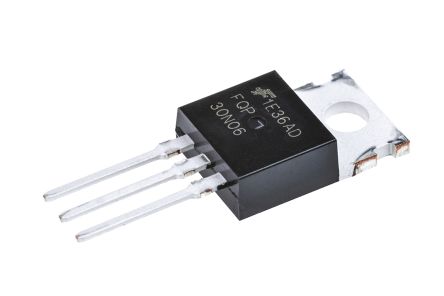

FAIRCHILD SEMICONDUCTOR FQP30N06 晶体管, MOSFET, N沟道, 30 A, 60 V, 0.031 ohm, 10 V, 4 V
The is a 60V N-channel QFET® enhancement mode Power MOSFET is produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength. This product is general usage and suitable for many different applications.
- .
- Low gate charge
- .
- 100% Avalanche tested
- .
- Improved system reliability in PFC and soft switching topologies
- .
- Switching loss improvements
- .
- Lower conduction loss
- .
- 175°C Maximum junction temperature rating
额定电压DC 60.0 V
额定电流 30.0 A
针脚数 3
漏源极电阻 0.031 Ω
极性 N-Channel
耗散功率 79 W
阈值电压 4 V
漏源极电压Vds 60 V
漏源击穿电压 60.0 V
栅源击穿电压 ±25.0 V
连续漏极电流Ids 30.0 A
上升时间 85 ns
输入电容Ciss 945pF @25VVds
额定功率Max 79 W
下降时间 40 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 79W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.1 mm
宽度 4.7 mm
高度 9.4 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQP30N06 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
STP16NF06L 意法半导体 | 功能相似 | FQP30N06和STP16NF06L的区别 |
STP16NF06 意法半导体 | 功能相似 | FQP30N06和STP16NF06的区别 |
STP36NF06L 意法半导体 | 功能相似 | FQP30N06和STP36NF06L的区别 |
