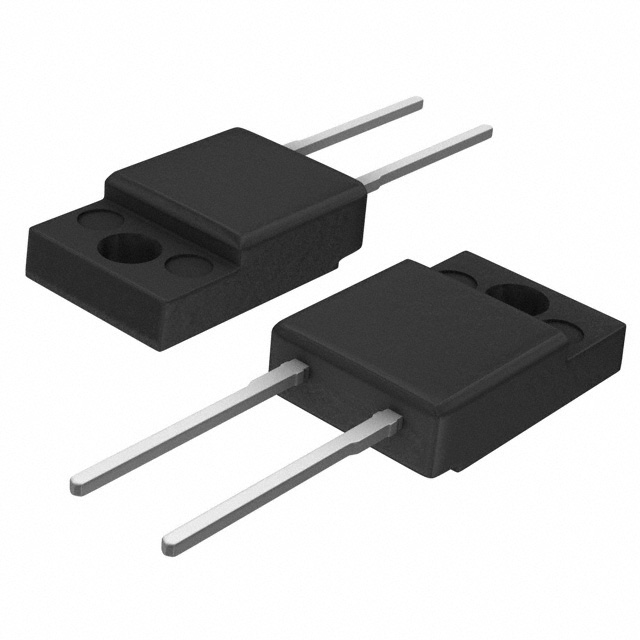

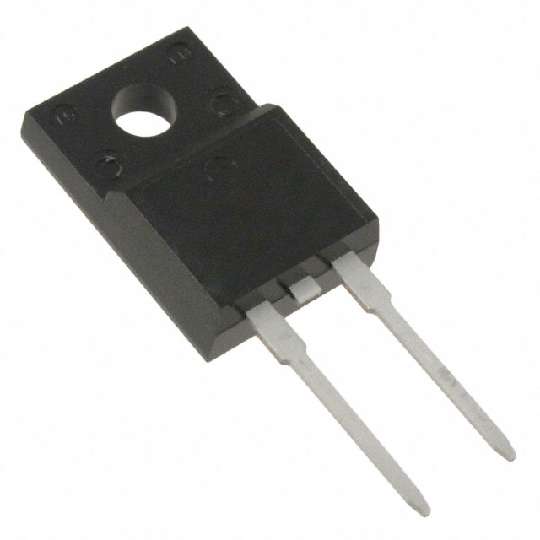

FAIRCHILD SEMICONDUCTOR FFPF08S60SNTU 快速/超快功率二极管, 单, 600 V, 8 A, 3.4 V, 25 ns, 60 A
The is a STEALTH™ II Diode with soft-recovery characteristics. It comes with silicon nitride passivated ion-implanted epitaxial planar construction. This device is intended for use as free-wheeling of boost diode in switching power supplies and other power switching applications. Their low stored charge and Hyperfast™ soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
- .
- Avalanche energy rated
- .
- High reliability
- .
- 25ns at IF = 8A Stealth recovery trr
正向电压 3.4V @8A
热阻 6.8℃/W RθJC
反向恢复时间 25 ns
正向电流 8 A
最大正向浪涌电流（Ifsm） 60 A
正向电压Max 3.4 V
正向电流Max 8 A
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220-2
长度 10.16 mm
宽度 4.7 mm
高度 15.87 mm
封装 TO-220-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
