FAIRCHILD SEMICONDUCTOR FDMS7670AS 晶体管, MOSFET, N沟道, 42 A, 30 V, 0.0024 ohm, 10 V, 1.6 V
The is a SyncFET™ N-channel MOSFET produced using PowerTrench® process. It is designed to minimize losses in power conversion application. Advancements in both silicon and package technologies have been combined to offer the lowest RDS ON while maintaining excellent switching performance. This device has the added benefit of an efficient monolithic Schottky body diode. It is suitable as synchronous rectifier for DC-to-DC converter.
- .
- Advanced package and silicon combination for low RDS ONand high efficiency
- .
- MSL1 Robust package design
- .
- 100% UIL tested
针脚数 8
漏源极电阻 0.0024 Ω
极性 N-Channel
耗散功率 65 W
阈值电压 1.6 V
漏源极电压Vds 30 V
连续漏极电流Ids 22A
上升时间 6 ns
输入电容Ciss 4225pF @15VVds
额定功率Max 2.5 W
下降时间 5 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.5W Ta, 65W Tc
安装方式 Surface Mount
引脚数 8

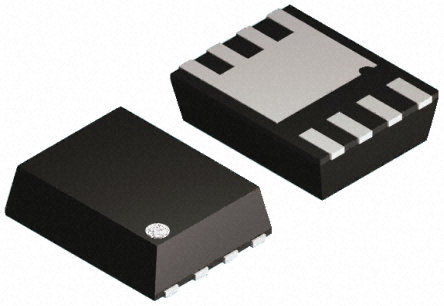

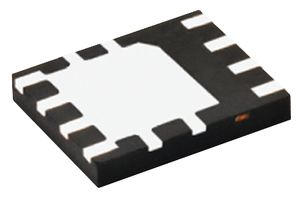

封装 Power-56
长度 5 mm
宽度 6 mm
高度 1.05 mm
封装 Power-56
材质 Silicon
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FDMS7670AS Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FDMS8660S 飞兆/仙童 | 类似代替 | FDMS7670AS和FDMS8660S的区别 |
BSC030N03LSGATMA1 英飞凌 | 功能相似 | FDMS7670AS和BSC030N03LSGATMA1的区别 |
BSC0902NSIATMA1 英飞凌 | 功能相似 | FDMS7670AS和BSC0902NSIATMA1的区别 |
