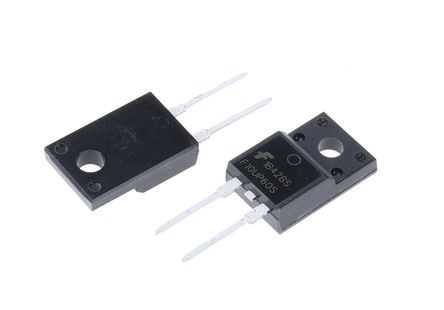

FAIRCHILD SEMICONDUCTOR FFPF10UP60STU 快速/超快功率二极管, 单, 600 V, 10 A, 2.2 V, 58 ns, 50 A
The is an Ultrafast Diode offers low forward voltage drop and rugged UIS capability. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies in welder and UPS application.
- .
- 40ns at IF=1A Ultrafast recovery
- .
- Avalanche energy rated
额定电压DC 600 V
额定电流 10.0 A
输出电流 ≤10.0 A
正向电压 2.2V @10A
极性 Standard
热阻 4.5℃/W RθJC
反向恢复时间 58 ns
正向电流 10 A
最大正向浪涌电流（Ifsm） 50 A
正向电压Max 2.2 V
正向电流Max 10 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 TO-220F-2
长度 10.16 mm
宽度 4.7 mm
高度 9.19 mm
封装 TO-220F-2
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FFPF10UP60STU Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FFPF10U60STU 飞兆/仙童 | 功能相似 | FFPF10UP60STU和FFPF10U60STU的区别 |
FFPF10U60S 飞兆/仙童 | 功能相似 | FFPF10UP60STU和FFPF10U60S的区别 |
FFPF10UP60S 安森美 | 功能相似 | FFPF10UP60STU和FFPF10UP60S的区别 |
