PowerTrench® N 通道 MOSFET,20A 至 59.9A,Fairchild Semiconductor### MOSFET 晶体管,Fairchild SemiconductorFairchild 提供大量 MOSFET 设备组合,包括高电压 >250V 低电压 Fairchild MOSFET 通过降低电压峰值和过冲提供极佳的设计可靠性,以减少结电容和反向恢复电荷,无需额外外部元件即可保持系统启动和运行更长时间。
General Description
This N-Channel MOSFET has been designed specifically to improve the overall efficiency and to minimize switch node ringing of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDSon, fast switching speed and body diode reverse recovery performance.
Features
Max rDSon= 7.5 mΩat VGS= 10 V, ID= 13 A
Max rDSon= 13 mΩat VGS= 4.5 V, ID= 10 A
Advanced Package and Silicon combination for low rDSon and high efficiency
Next generation enhanced body diode technology, engineered for soft recovery.
MSL1 robust package design
100% UIL tested
RoHS Compliant
Applications
IMVP Vcore Switching for Notebook
VRM Vcore Switching for Desktop and Server
OringFET / Load Switch
DC-DC Conversion
漏源极电阻 0.0065 Ω
极性 N-Channel
耗散功率 27 W
阈值电压 2 V
漏源极电压Vds 30 V
连续漏极电流Ids 14A
上升时间 2.7 ns
输入电容Ciss 1350pF @15VVds
额定功率Max 2.5 W
下降时间 2.3 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 27 W
安装方式 Surface Mount
引脚数 8

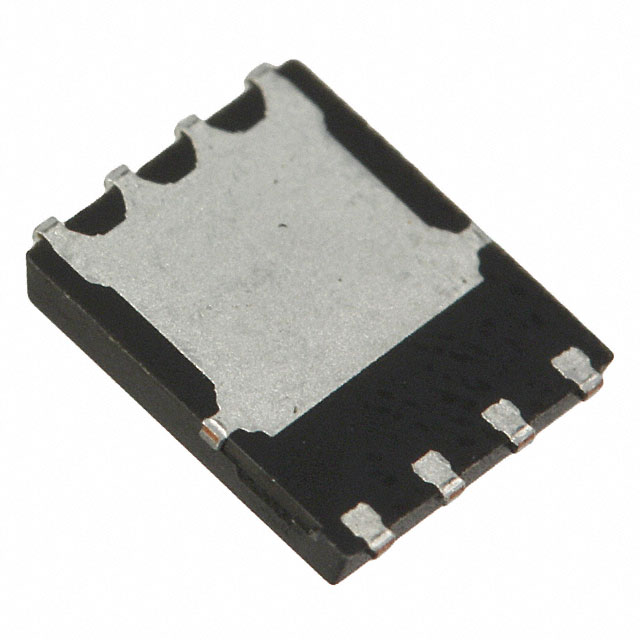

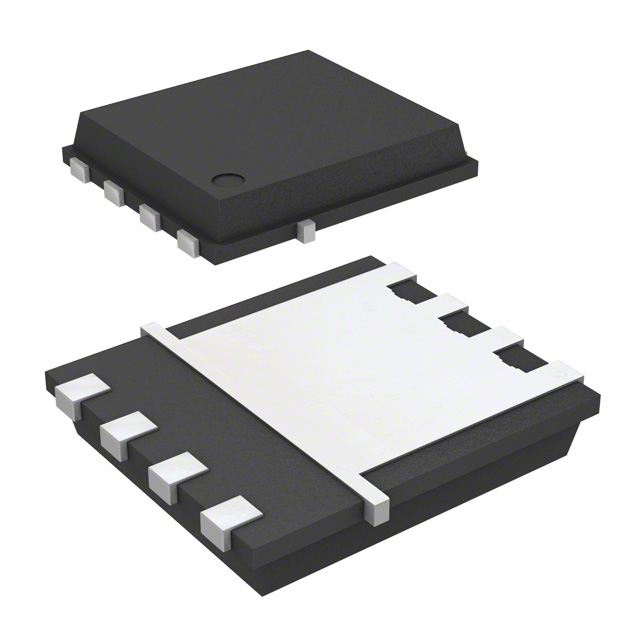

封装 Power-56-8
长度 5 mm
宽度 6 mm
高度 1.05 mm
封装 Power-56-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FDMS7692 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FDMS7558S 飞兆/仙童 | 类似代替 | FDMS7692和FDMS7558S的区别 |
FDMS7572S 飞兆/仙童 | 类似代替 | FDMS7692和FDMS7572S的区别 |
FDMS7580 飞兆/仙童 | 类似代替 | FDMS7692和FDMS7580的区别 |
