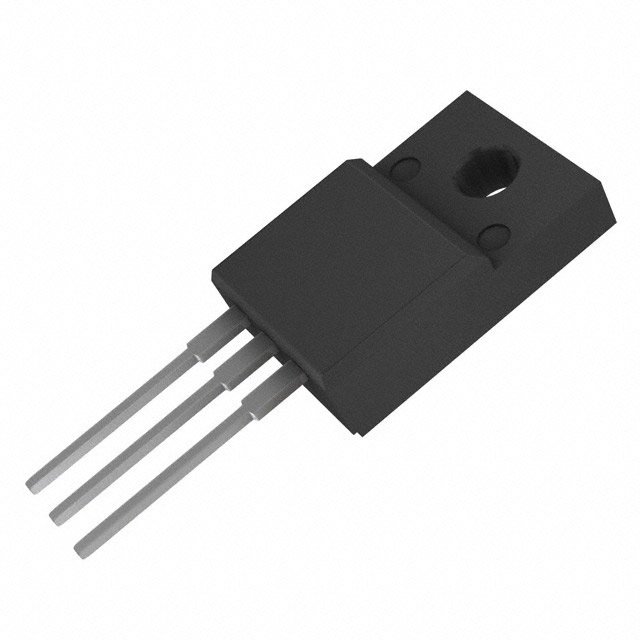

FAIRCHILD SEMICONDUCTOR FQPF27P06 晶体管, MOSFET, P沟道, -17 A, -60 V, 0.055 ohm, -10 V, -2 V
The is a -60V P-channel QFET® enhancement mode Power MOSFET is produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength. This product is general usage and suitable for many different applications.
- .
- Low gate charge
- .
- 100% Avalanche tested
- .
- Improved system reliability in PFC and soft switching topologies
- .
- Switching loss improvements
- .
- Lower conduction loss
- .
- 175°C Maximum junction temperature rating
额定电压DC -60.0 V
额定电流 -17.0 A
针脚数 3
漏源极电阻 0.055 Ω
极性 P-Channel
耗散功率 47 W
漏源极电压Vds 60 V
栅源击穿电压 ±25.0 V
连续漏极电流Ids 17.0 A
上升时间 185 ns
输入电容Ciss 1400pF @25VVds
额定功率Max 47 W
下降时间 90 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 47W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.67 mm
宽度 4.7 mm
高度 16.3 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQPF27P06 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FQPF12P10 飞兆/仙童 | 功能相似 | FQPF27P06和FQPF12P10的区别 |
FQA47P06 飞兆/仙童 | 功能相似 | FQPF27P06和FQA47P06的区别 |
FQP22P10 飞兆/仙童 | 功能相似 | FQPF27P06和FQP22P10的区别 |
