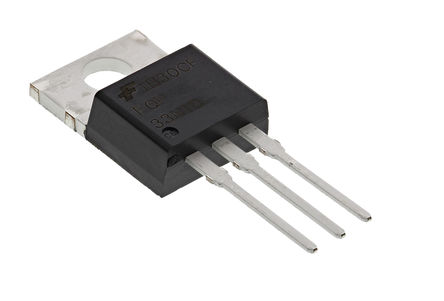

FAIRCHILD SEMICONDUCTOR FQP33N10 晶体管, MOSFET, N沟道, 33 A, 100 V, 52 mohm, 10 V, 4 V
The is a 100V N-channel QFET® enhancement mode Power MOSFET is produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and to provide superior switching performance and high avalanche energy strength. This product is general usage and suitable for many different applications.
- .
- Low gate charge
- .
- 100% Avalanche tested
- .
- Improved system reliability in PFC and soft switching topologies
- .
- Switching loss improvements
- .
- Lower conduction loss
- .
- 175°C Maximum junction temperature rating
额定电压DC 100 V
额定电流 33.0 A
通道数 1
针脚数 3
漏源极电阻 0.052 Ω
极性 N-Channel
耗散功率 127 W
阈值电压 4 V
漏源极电压Vds 100 V
漏源击穿电压 100 V
栅源击穿电压 ±25.0 V
连续漏极电流Ids 33.0 A
上升时间 195 ns
输入电容Ciss 1500pF @25VVds
额定功率Max 127 W
下降时间 110 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 127 W
安装方式 Through Hole
引脚数 3

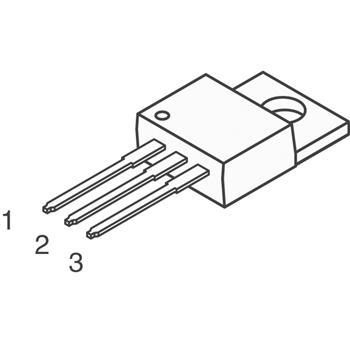

封装 TO-220-3
长度 10.67 mm
宽度 4.83 mm
高度 9.4 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQP33N10 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
STP55NF06 意法半导体 | 功能相似 | FQP33N10和STP55NF06的区别 |
STP80NF10 意法半导体 | 功能相似 | FQP33N10和STP80NF10的区别 |
STP120NF10 意法半导体 | 功能相似 | FQP33N10和STP120NF10的区别 |
