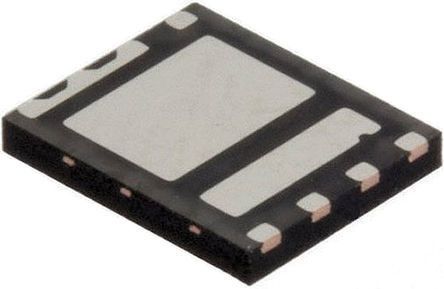

FDMS7620S 系列 30 V 20 mOhm 双 N沟道 表面贴装 PowerTrench Mosfet - 功率56
The is a dual N-channel PowerTrench® MOSFET designed to provide an optimal synchronous buck power stage in terms of efficiency and PCB utilization. The low switching loss high side MOSFET is complementary by a low conduction loss low side SyncFET. The device is suitable for use with general purpose point of load and notebook system power applications.
- .
- Pin out optimized for simple PCB design
- .
- Thermally efficient dual Power 56 package
通道数 2
漏源极电阻 0.0152 Ω
极性 Dual N-Channel
耗散功率 2.2 W
阈值电压 2.2 V
漏源极电压Vds 30 V
连续漏极电流Ids 10.1A/12.4A
输入电容Ciss 608pF @15VVds
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.2 W
安装方式 Surface Mount
引脚数 8
封装 Power-56-8
长度 5 mm
宽度 6 mm
高度 0.75 mm
封装 Power-56-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
