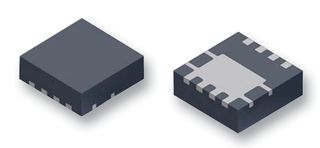

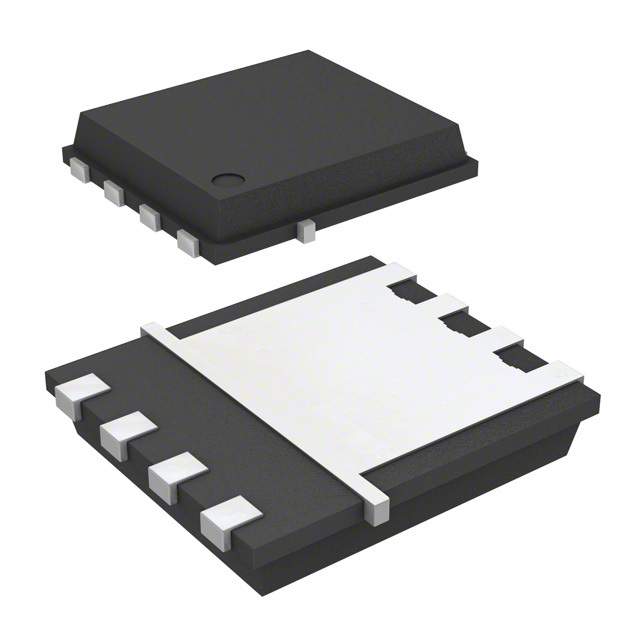

FAIRCHILD SEMICONDUCTOR FDMC7660 晶体管, MOSFET, N沟道, 20 A, 30 V, 0.0018 ohm, 10 V, 1.7 V
The is a N-channel MOSFET produced using Semiconductor"s advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance. It is well suited for load switching applications common in portable battery packs.
- .
- High performance technology for extremely low RDS ON
针脚数 8
漏源极电阻 0.0018 Ω
极性 N-Channel
耗散功率 2.3 W
阈值电压 1.7 V
漏源极电压Vds 30 V
连续漏极电流Ids 20.0 A
输入电容Ciss 4830pF @15VVds
额定功率Max 2.3 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 2.3W Ta, 41W Tc
安装方式 Surface Mount
引脚数 8
封装 PowerTDFN-8
长度 3.3 mm
宽度 3.3 mm
高度 1.05 mm
封装 PowerTDFN-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FDMC7660 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
