F930J226MAA

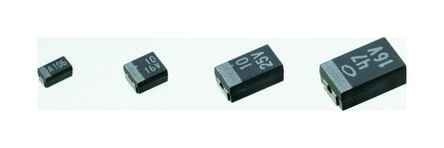

F93 系列塑模片式，固体钽电容器 紧凑型高容量产品 无铅结构 尺寸 --- 外壳代码 | W1 mm | W2 mm | H mm | 长度 mm | S mm A | 1.6 ±0.2 | 1.2 ±0.1 | 1.6 ±0.2 | 3.2 ±0.2 | 0.8 ±0.2 B | 2.8 ±0.2 | 2.2 ±0.1 | 1.9 ±0.2 | 3.5 ±0.2 | 0.8 ±0.2 C | 3.2 ±0.2 | 2.2 ±0.1 | 2.5 ±0.2 | 6.0 ±0.2 | 1.3 ±0.2 N | 4.3 ±0.2 | 2.4 ±0.1 | 2.8 ±0.2 | 7.3 ±0.2 | 1.3 ±0.2 电容容差 | ±20% ---|--- 工作温度范围 | -55 至 +125°C（额定温度 +85°C） 泄漏电流（20°C 1 分钟值） | ≤ 0.01 CV 或 0.5 μA 的较大值 ### 表面安装 85 ° C

钽器

贸泽:
Tantalum Capacitors - Solid SMD 6.3volts 22uF 3.2x1.6

艾睿:

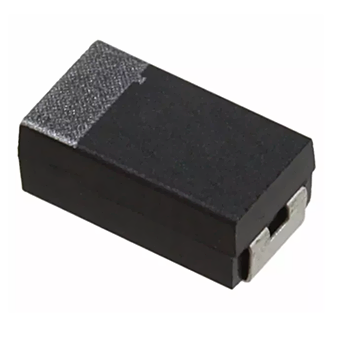

If you need a capacitor that can be used in a variety of applications such as heavy industrial, medical, military, and aerospace then use this F930J226MAA solid tantalum capacitor from AVX. It can withstand a voltage of 6.3 VDC. This solid capacitor has a maximum operating temperature of 125 °C. Its leakage current is 1.4 μA. Its capacitance value is 22uF. This product is 3.2 mm long, 1.6 mm tall and 1.6 mm deep. It has a tolerance of 20%.

Chip1Stop:
Cap Tant Solid 22uF 6.3V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 2.5 Ohm 125℃ T/R

Verical:
Cap Tant Solid 22uF 6.3V A CASE 20% 3.2 X 1.6 X 1.6mm Inward L SMD 3216-18 2.5 Ohm 125C T/R

Win Source:
22μF Molded Tantalum Capacitors 6.3V 1206 3216 Metric 2.5 Ohm 0.126" L x 0.063" W 3.20mm x 1.60mm
