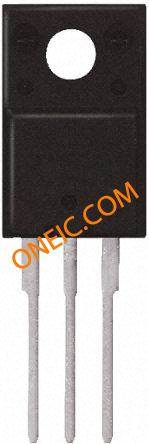

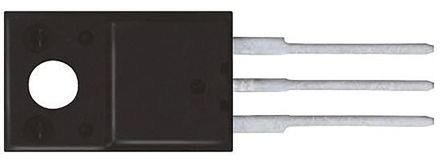

FAIRCHILD SEMICONDUCTOR FQPF7N80C 功率场效应管, MOSFET, N沟道, 6.6 A, 800 V, 1.57 ohm, 10 V, 5 V
The is a N-channel QFET® enhancement-mode power MOSFET produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance and to provide superior switching performance and high avalanche energy strength. This device is suitable for switched mode power supplies, active power factor correction PFC and electronic lamp ballasts.
- .
- Low gate charge 27nC
- .
- Low Crss 10pF
- .
- 100% avalanche tested
额定电压DC 800 V
额定电流 6.60 A
通道数 1
针脚数 3
漏源极电阻 1.57 Ω
极性 N-Channel
耗散功率 56 W
阈值电压 5 V
漏源极电压Vds 800 V
漏源击穿电压 800 V
栅源击穿电压 ±30.0 V
连续漏极电流Ids 6.60 A
上升时间 100 ns
输入电容Ciss 1680pF @25VVds
额定功率Max 56 W
下降时间 60 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 56W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.16 mm
宽度 4.7 mm
高度 9.19 mm
封装 TO-220-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQPF7N80C Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
SPP11N80C3 英飞凌 | 功能相似 | FQPF7N80C和SPP11N80C3的区别 |
STP7NK80ZFP 意法半导体 | 功能相似 | FQPF7N80C和STP7NK80ZFP的区别 |
SPA04N80C3 英飞凌 | 功能相似 | FQPF7N80C和SPA04N80C3的区别 |
