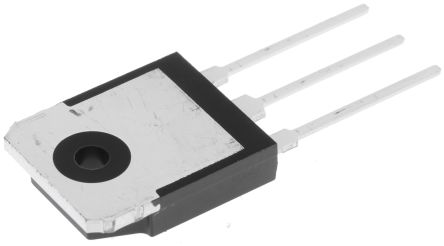

FAIRCHILD SEMICONDUCTOR FQA40N25 晶体管, MOSFET, N沟道, 40 A, 250 V, 0.051 ohm, 10 V, 5 V
The is a QFET® N-channel enhancement-mode Power MOSFET produced using Semiconductor"s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce ON-state resistance, superior switching performance and high avalanche energy strength. It is suitable for switched mode power supplies, active power factor correction PFC and electronic lamp ballasts.
- .
- 82.5nC Typical low gate charge
- .
- 70pF Typical low Crss
- .
- 100% Avalanche tested
额定电压DC 250 V
额定电流 40.0 A
针脚数 3
漏源极电阻 0.051 Ω
极性 N-Channel
耗散功率 280 W
阈值电压 5 V
漏源极电压Vds 250 V
漏源击穿电压 250 V
栅源击穿电压 ±30.0 V
连续漏极电流Ids 40.0 A
上升时间 580 ns
输入电容Ciss 4000pF @25VVds
额定功率Max 280 W
下降时间 165 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 280 W
安装方式 Through Hole
引脚数 3
封装 TO-3-3
长度 15.8 mm
宽度 5 mm
高度 18.9 mm
封装 TO-3-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FQA40N25 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
STP55NF06 意法半导体 | 功能相似 | FQA40N25和STP55NF06的区别 |
STP80NF10 意法半导体 | 功能相似 | FQA40N25和STP80NF10的区别 |
STD18N55M5 意法半导体 | 功能相似 | FQA40N25和STD18N55M5的区别 |
