QFET® N 通道 MOSFET,超过 31A,Fairchild SemiconductorFairchild Semiconductor 的新型 QFET® 平面 MOSFET 使用先进的专利技术为广泛的应用提供最佳的工作性能,包括电源、PFC(功率因数校正)、直流-直流转换器、等离子显示面板 PDP、照明镇流器和运动控制。 它们通过降低导通电阻 RDSon 来减少通态损耗,并通过降低栅极电荷 Qg 和输出电容 Coss 来减少切换损耗。 通过使用先进的 QFET® 工艺技术,Fairchild 可提供比竞争平面 MOSFET 设备更高的品质因素 FOM。### MOSFET 晶体管,Fairchild SemiconductorFairchild 提供大量 MOSFET 设备组合,包括高电压 >250V 低电压 Fairchild MOSFET 通过降低电压峰值和过冲提供极佳的设计可靠性,以减少结电容和反向恢复电荷,无需额外外部元件即可保持系统启动和运行更长时间。
General Description
These N-Channel enhancement mode power field effect transistors are produced using ’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for low voltage applications such as audio amplifier, high efficiency switching DC/DC converters, and DC motor control
Features
• 55A, 100V, RDSon = 0.026Ω @VGS = 10 V
• Low gate charge typical 75 nC
• Low Crss typical 130 pF
• Fast switching
• 100% avalanche tested
• Improved dv/dt capability
• 175°C maximum junction temperature rating
额定电压DC 100 V
额定电流 55.0 A
漏源极电阻 26.0 mΩ
极性 N-Channel
耗散功率 155 W
漏源极电压Vds 100 V
漏源击穿电压 100 V
栅源击穿电压 ±25.0 V
连续漏极电流Ids 55.0 A
上升时间 250 ns
输入电容Ciss 2730pF @25VVds
额定功率Max 155 W
下降时间 140 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 155 W
安装方式 Through Hole
引脚数 3

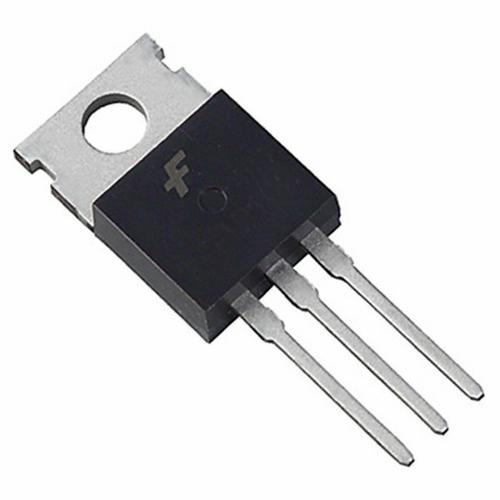

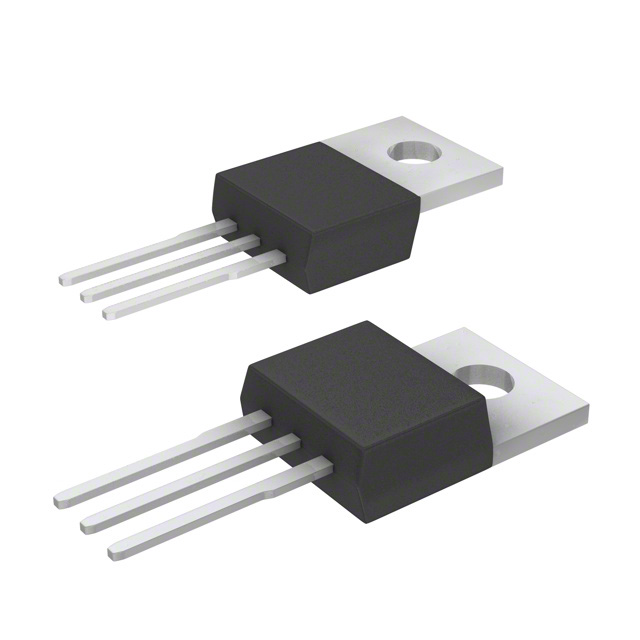

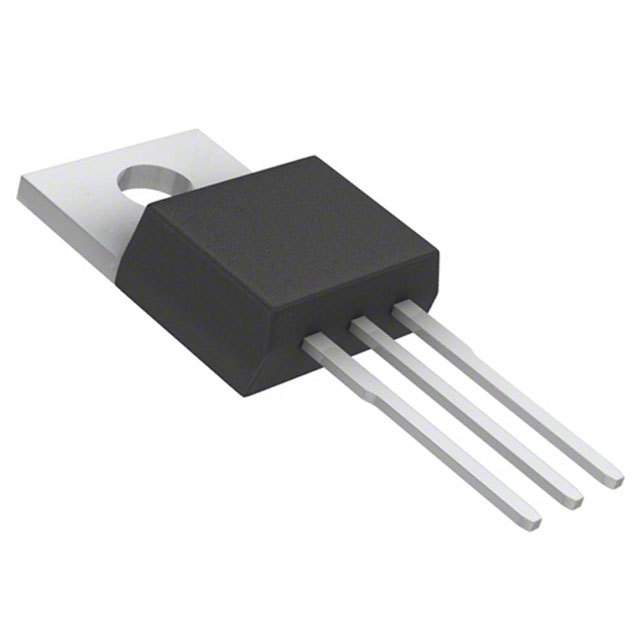

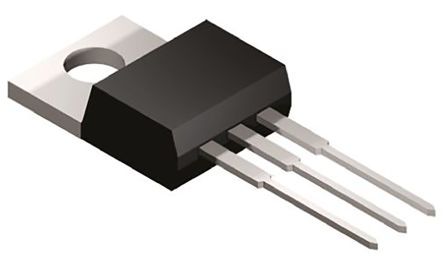

封装 TO-220-3
长度 10.1 mm
宽度 4.7 mm
高度 9.4 mm
封装 TO-220-3
工作温度 -55℃ ~ 175℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FQP55N10 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
STP55NF06 意法半导体 | 功能相似 | FQP55N10和STP55NF06的区别 |
STP80NF10 意法半导体 | 功能相似 | FQP55N10和STP80NF10的区别 |
STP120NF10 意法半导体 | 功能相似 | FQP55N10和STP120NF10的区别 |
