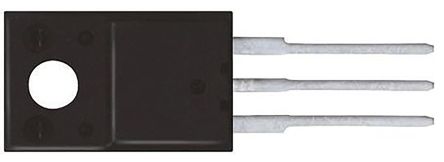

FAIRCHILD SEMICONDUCTOR FDPF44N25T 晶体管, MOSFET, N沟道, 44 A, 250 V, 0.058 ohm, 10 V, 3 V
The is an UniFET™ high voltage MOSFET produced based on planar stripe and DMOS technology. It is tailored to reduce ON-state resistance and to provide better switching performance and higher avalanche energy strength. This device family is suitable for switching power converter applications such as power factor correction PFC, flat panel display FPD TV power, ATX and electronic lamp ballasts.
- .
- 47nC Typical low gate charge
- .
- 60pF Typical low Crss
针脚数 3
漏源极电阻 0.058 Ω
极性 N-Channel
耗散功率 38 W
阈值电压 3 V
漏源极电压Vds 250 V
漏源击穿电压 250 V
连续漏极电流Ids 18.0 A
输入电容Ciss 2870pF @25VVds
额定功率Max 38 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 38W Tc
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10.36 mm
宽度 4.9 mm
高度 16.07 mm
封装 TO-220-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
