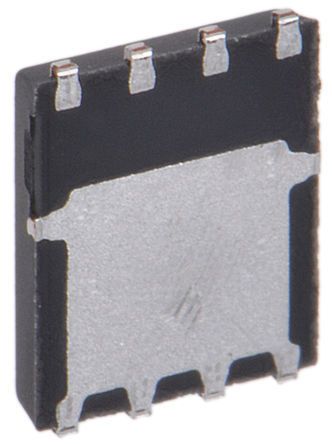

FAIRCHILD SEMICONDUCTOR FDMS86300DC 晶体管, MOSFET, N沟道, 76 A, 80 V, 0.0026 ohm, 10 V, 3.3 V
The is a N-channel MOSFET produced using Semiconductor"s advanced PowerTrench® process. Advancements in both silicon and Dual Cool™ package technologies have been combined to offer the lowest RDS ON while maintaining excellent switching performance by extremely low junction-to-ambient thermal resistance. It is suitable as synchronous rectifier for DC-to-DC converters.
- .
- Dual Cool™ top side cooling package
- .
- High performance technology for extremely low RDS ON
- .
- 100% UIL tested
针脚数 8
漏源极电阻 0.0026 Ω
极性 N-Channel
耗散功率 125 W
阈值电压 3.3 V
漏源极电压Vds 80 V
连续漏极电流Ids 24A
输入电容Ciss 7005pF @40VVds
额定功率Max 3.2 W
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 3.2W Ta, 125W Tc
安装方式 Surface Mount
引脚数 8
封装 DualCool-56-8
长度 5.1 mm
宽度 5.85 mm
高度 1.05 mm
封装 DualCool-56-8
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
