FODM121BR2

Fairchild Semiconductor### 光耦合器，Fairchild Semiconductor

Description

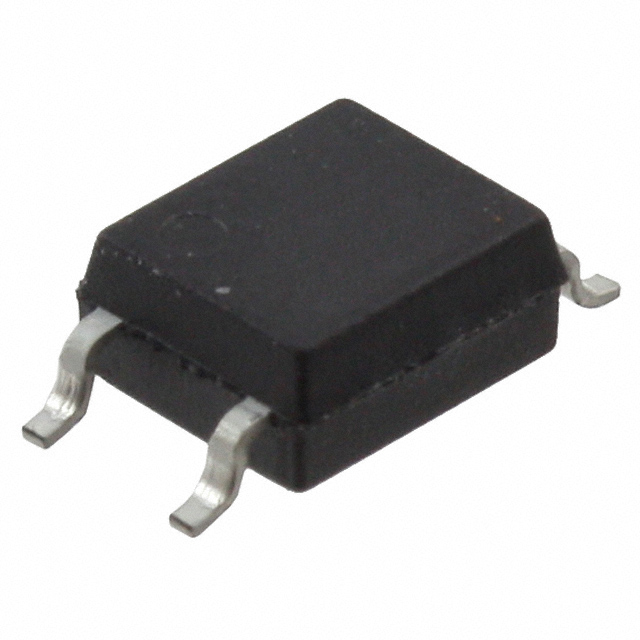

The FODM124, FODM121 series, and FODM2701 consists of a gallium arsenide infrared emitting diode driving a phototransistor in a compact 4-pin mini-flat package. The lead pitch is 2.54mm. The FODM2705 consists of two gallium arsenide infrared emitting diodes connected in inverse parallel for AC operation.

Features

■More than 5mm creepage/clearance

■Compact 4-pin surface mount package 2.4mm maximum standoff height

■Current Transfer Ratio in selected groups

DC Input:

FODM121: 50–600% FODM2701: 50–300%

FODM121A: 100–300% FODM124: 100% MIN

FODM121B: 50–150%

FODM121C: 100–200%

ACInput:

FODM2705: 50–300%

■Available in tape and reel quantities of 2500

■Applicable to Infrared Ray reflow 260°C max, 10 sec.
