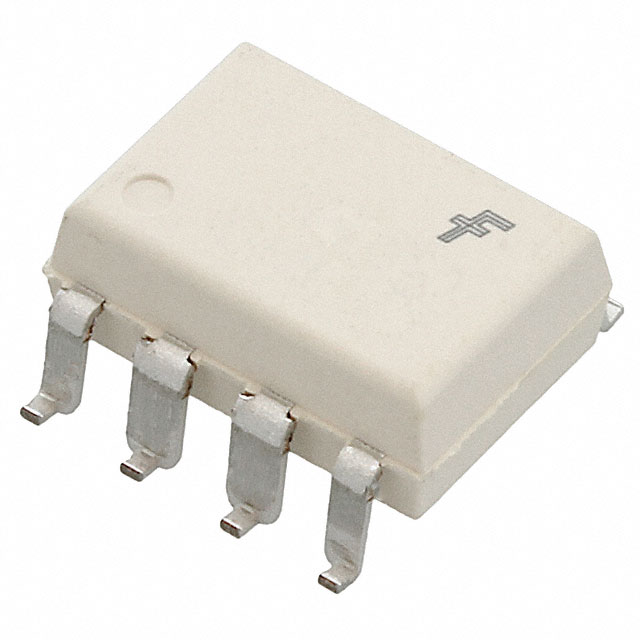

FOD3182TSV

3A输出电流，高速MOSFET栅极驱动光电耦合器 3A Output Current, High Speed MOSFET Gate Driver Optocoupler

Description

The FOD3182 is a 3A Output Current, High Speed MOSFET Gate Drive Optocoupler. It consists of a aluminium gallium arsenide AlGaAs light emitting diode optically coupled to a CMOS detector with PMOS and NMOS output power transistors integrated circuit power stage. It is ideally suited for high frequency driving of power MOSFETS used in Plasma Display Panels PDPs, motor control inverter applications and high performance DC/DC converters.

Features

■High noise immunity characterized by 50kV/µs Typ. common mode rejection @ VCM= 2,000V

■Guaranteed operating temperature range of -40°C to +100°C

■3A peak output current

■Fast switching speed

    –210ns max. propagation delay

    –65ns max pulse width distortion

■Fast output rise/fall time

    –Offers lower dynamic power dissipation

■250kHz maximum switching speed

■Wide VDDoperating range: 10V to 30V

■Use of P-Channel MOSFETs at output stage enables output voltage swing close to the supply rail rail-to-rail output

■5000Vrms, 1 minute isolation

■Under voltage lockout protection UVLO with hysteresis – optimized for driving MOSFETs

■Minimum creepage distance of 8.0mm

■Minimum clearance distance of 10mm to 16mm option TV or TSV

■Minimum insulation thickness of 0.5mm

.

■1,414 peak working insulation voltage VIORM

Applications

■Plasma Display Panel

■High performance DC/DC convertor

■High performance switch mode power supply

■High performance uninterruptible power supply

■Isolated Power MOSFET gate drive
