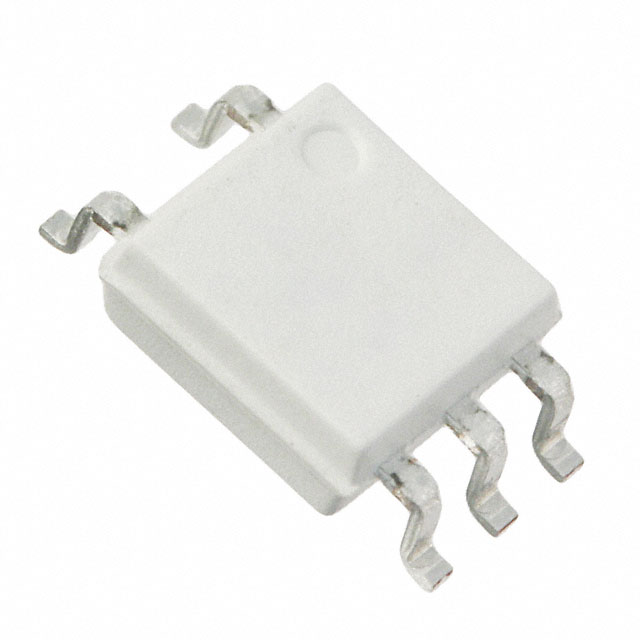

FAIRCHILD SEMICONDUCTOR FODM611R2 光电耦合器, 5-MFP, 10MB
The is a 5V 10Mbps high-speed Logic Gate Output Open Collector Optocoupler, which supports isolated communications allowing digital signals to communicate between systems without conducting ground loops or hazardous voltages. It utilizes "s proprietary coplanar packaging technology, Optoplanar® and optimized IC design to achieve high noise immunity, characterized by high common mode transient immunity specifications. This optocoupler consists of an AlGaAS LED at the input, optically coupled to a high-speed integrated photodetector logic gate. The output of the detector IC is an open collector Schottky-clamped transistor. The coupled parameters are guaranteed over the wide temperature range. A maximum input signal of 5A will provide a minimum output sink current of 13mA fan out of 8.
上升/下降时间 20ns, 10ns
通道数 1
针脚数 5
正向电压 1.45 V
输入电流 10 mA
耗散功率 0.1 W
数据速率 10.0 Mbps
上升时间 20 ns
隔离电压 3750 Vrms
正向电流 50 mA
输入电压Max 5.5 V
输入电流Min 50 mA
击穿电压 5 V
正向电压Max 1.8 V
正向电流Max 50 mA
下降时间 10 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 4.5V ~ 5.5V
输入电压 5 V
安装方式 Surface Mount
引脚数 5
封装 5-Mini-Flat
高度 2.11 mm
封装 5-Mini-Flat
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FODM611R2 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FODM611 飞兆/仙童 | 类似代替 | FODM611R2和FODM611的区别 |
