FOD2712AV

光隔离误差放大器 Optically Isolated Error Amplifier

Description

The FOD2712A Optically Isolated Amplifier consists of the popular AZ431L precision programmable shunt reference and an optocoupler. The optocoupler is a gallium arsenide GaAs light emitting diode optically coupled to a silicon phototransistor. The reference voltage tolerance is 1%. The current transfer ratio CTR ranges from 100% to 200%.

It is primarily intended for use as the error amplifier/reference voltage/optocoupler function in isolated AC to DC power supplies and dc/dc converters.

When using the FOD2712A, power supply designers can reduce the component count and save space in tightly packaged designs. The tight tolerance reference eliminates the need for adjustments in many applications.

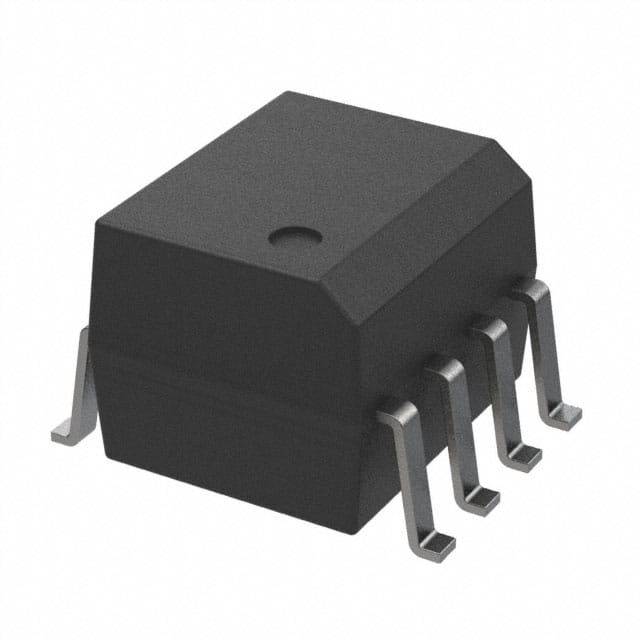

The device comes in a compact 8-pin small outline package.

Features

■ Optocoupler, precision reference and error amplifier in single package

■ 1.240V ± 1% reference

■ CTR 100% to 200%

■ 2,500V RMS isolation

■ UL approval E90700

Applications

■ Power system for workstations

■ Telecom central office supply

■ Telecom bricks
