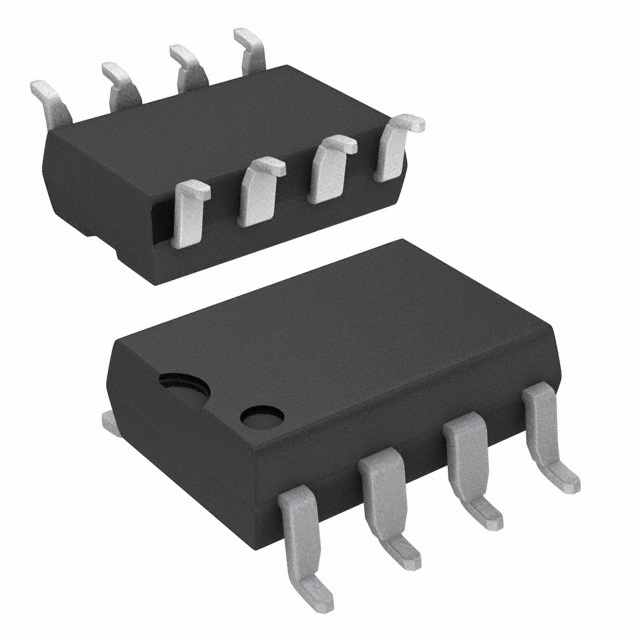

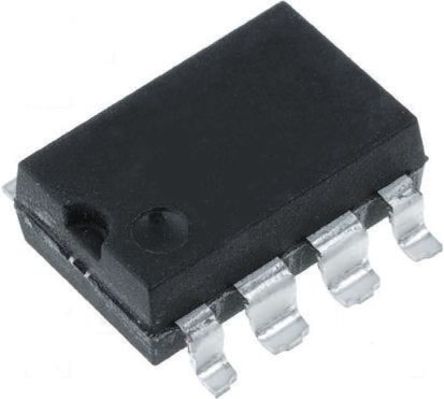

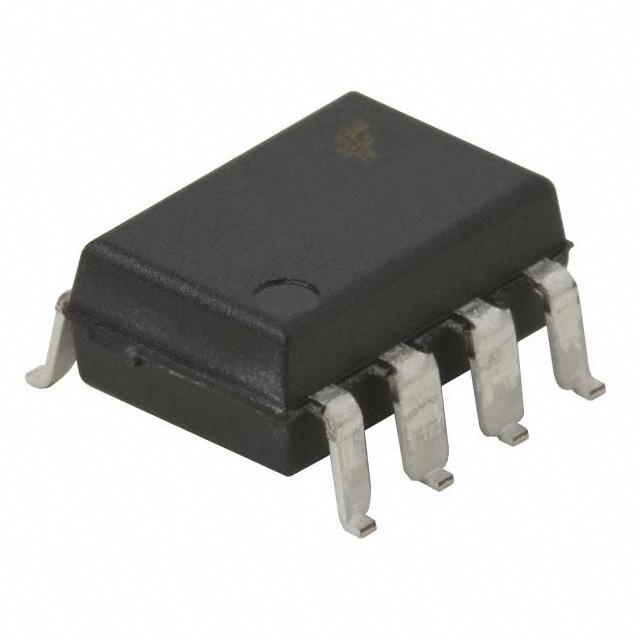

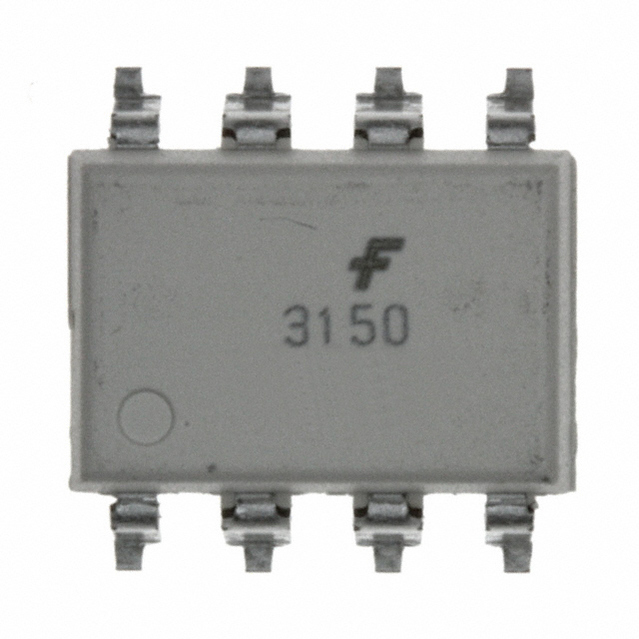

FOD3150S

IGBT/MOSFET 栅极驱动，Fairchild Semiconductor### 光耦合器，Fairchild Semiconductor

The is a 1A output current high noise immunity Gate Drive Optocoupler, capable of driving most 800V/20A IGBT/MOSFET. It is ideally suited for fast switching driving of power IGBT and MOSFETs used in motor control inverter applications and high performance power system. It utilizes "s proprietary coplanar packaging technology, Optoplanar® and optimized IC design to achieve high noise immunity, characterized by high common mode rejection. It consists of a gallium aluminium arsenide AlGaAs LED optically coupled to an integrated circuit with a high-speed driver for push-pull MOSFET output stage. Use of P-channel MOSFETs at output stage enables output voltage swing close to the supply rail.

.

High noise immunity characterized by 20kV/µs minimum common mode rejection

.

Wide supply voltage range from 15 to 30V

.

500ns Maximum propagation delay

.

300ns Maximum pulse width distortion

.

Undervoltage-Lockout UVLO with hysteresis

.

Extended industrial temperate range

.

RDS ON of 3R typical offers lower power dissipation

.

>8.0mm Clearance and creepage distance option T
