FOD3180TV

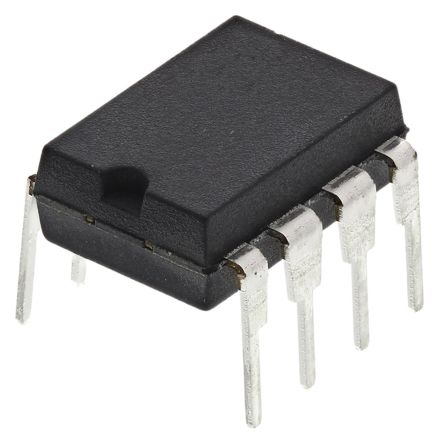

FAIRCHILD SEMICONDUCTOR  FOD3180TV  光电耦合器, DIP-8, 2A, MOSFET

The is a 1-channel 8-pin high speed MOSFET Gate Driver Optocoupler consists of an aluminium gallium arsenide AlGaAs light emitting diode optically coupled to a CMOS detector with PMOS and NMOS output power transistors integrated circuit power stage. It is ideally suited for high frequency driving of power MOSFETs used in plasma display panels PDPs, motor control inverter applications and high performance DC/DC converters.

.

Under voltage lockout protection UVLO with hysteresis

.

2A Minimum peak output current

.

200ns Maximum propagation delay over temperature range

.

250kHz Maximum switching speed

.

30ns Typical pulse width distortion

.

7mm Minimum creepage distance
