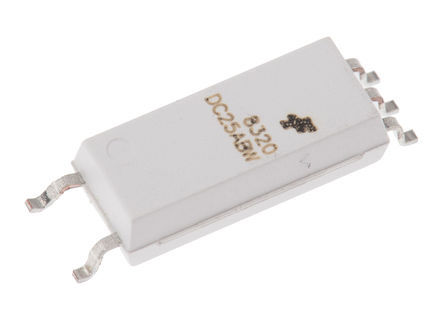

IGBT/MOSFET 栅极驱动,Fairchild Semiconductor### 光耦合器,Fairchild Semiconductor
* ’s Optoplanar® packaging technology provides reliable and high voltage insulation with greater than 8mm creepage and clearance distance, and 0.5mm internal insulation distance while still offering a compact footprint * 2.5A output current driving capability for medium power IGBT/MOSFET * P-Channel MOSFETs at Output Stage Enable Output Voltage Swing Close to Supply Rail * 20kV/µs Minimum Common Mode Rejection * Wide Supply Voltage range from 15V to 30V * Fast Switching Speed over full operating temperature range * 500ns max. propagation delay * 300ns max. pulse width distortion * Under-Voltage Lockout UVLO with hysteresis * Extended industrial temperate range, -40 to 100°C temperature range * Safety and regulatory approvals * UL1577, 5,000VRMS for 1 min. * DIN EN/IEC60747-5-5, 1,414V peak working insulation voltage
上升/下降时间 60 ns
通道数 1
针脚数 5
正向电压 1.5 V
输入电流 25.0 mA
耗散功率 0.5 W
上升时间 60 ns
隔离电压 5000 Vrms
正向电流 25 mA
输入电流Min 25 mA
击穿电压 5 V
正向电压Max 1.8 V
正向电流Max 25 mA
下降时间 60 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 16V ~ 30V
安装方式 Surface Mount
引脚数 5

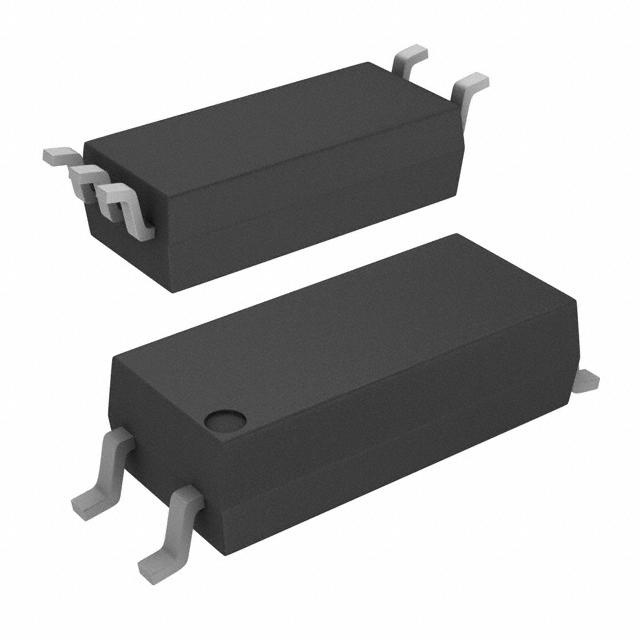

封装 SOP-5
高度 2.65 mm
封装 SOP-5
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FOD8321R2V Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FOD8321V 飞兆/仙童 | 类似代替 | FOD8321R2V和FOD8321V的区别 |
