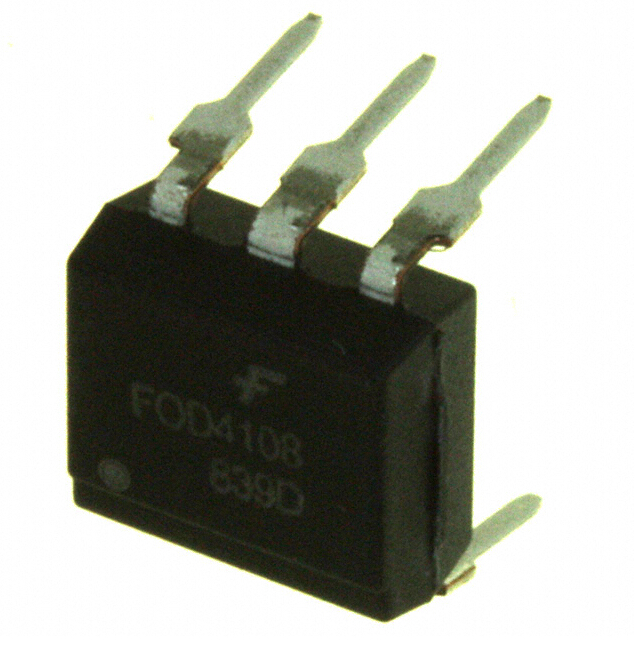

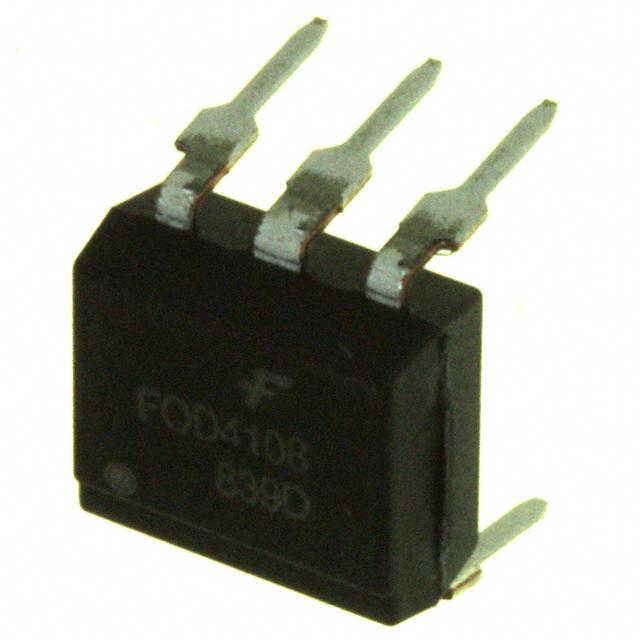

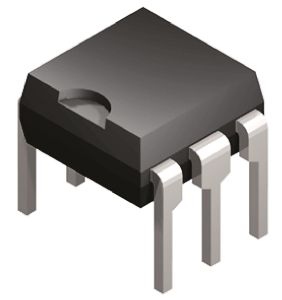

FAIRCHILD SEMICONDUCTOR FOD4108 光电耦合器, 三端双向可控硅输出, 过零, DIP, 6 引脚, 5 kV, 过零, 800 V
The is a 6-pin zero crossing TRIAC driver Output Optocoupler consists of an infrared emitting diode coupled to a hybrid TRIAC formed with two inverse parallel SCRs which form the TRIAC function capable of driving discrete TRIACs. It is suitable for solid-state relay, industrial controls, AC motor starter and static power switches.
- .
- High static dv/dt 10000V/µs
- .
- 300mA On-state current
- .
- 2mA High trigger sensitivity
- .
- 850V Maximum working insulation voltage
- .
- 6000V High allowable overvoltage
输出电流 0.3 A
通道数 1
针脚数 6
正向电压 1.25 V
输入电流 20 mA
耗散功率 500 mW
上升时间 60 µs
隔离电压 5000 Vrms
保持电流 500 µA
正向电流 30 mA
输出电压Max 560 VAC
输入电流Min 30 mA
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 30 mA
下降时间 52 µs
工作温度Max 100 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 7.8 mm
宽度 7 mm
高度 4 mm
封装 DIP-6
工作温度 -55℃ ~ 100℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
