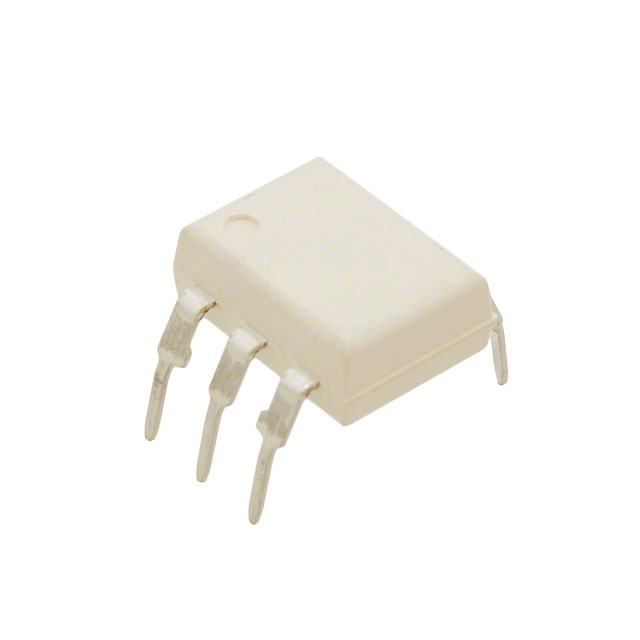

FOD4218TV

FAIRCHILD SEMICONDUCTOR  FOD4218TV  光电耦合器, 三端双向可控硅输出, DIP, 6 引脚, 5 kV, 非过零, 800 V

The is a 6-pin snubberless random phase TRIAC Driver consists of an infrared emitting diode coupled to a hybrid random phase TRIAC formed with two inverse parallel SCRs which form the TRIAC function capable of driving discrete TRIACs. It utilizes a high efficiency infrared emitting diode which offers an improved trigger sensitivity. It is suitable for solid-state relays and static power switches.

.

High static dv/dt 10000V/µs

.

300mA On-state current

.

1.3mA High trigger sensitivity

.

850V Maximum working insulation voltage

.

6000V High allowable overvoltage
