FAIRCHILD SEMICONDUCTOR FFH60UP60S3 标准功率二极管, 单, 600 V, 60 A, 1.7 V, 80 ns, 600 A
The is an Ultrafast Rectifier offers low forward voltage drop and rugged UIS capability. This device is intended for use as freewheeling and clamping diodes in a variety of switching power supplies and other power switching applications. It is especially suited for use in switching power supplies and industrial application as welder and UPS application.
- .
- 80ns at IF=60A Ultrafast recovery
- .
- Avalanche energy rated
正向电压 1.7V @60A
热阻 0.7℃/W RθJC
反向恢复时间 80 ns
正向电流 60 A
最大正向浪涌电流（Ifsm） 600 A
正向电压Max 1.7 V
正向电流Max 60 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 3

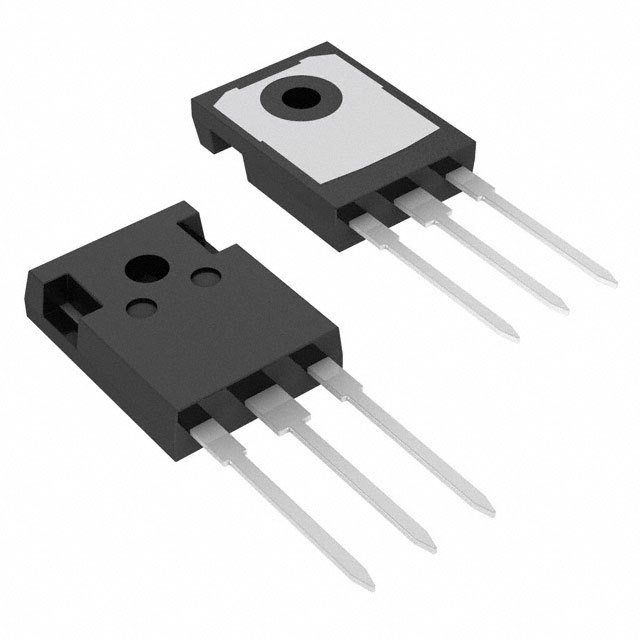

封装 TO-247-3
长度 15.87 mm
宽度 4.82 mm
高度 20.82 mm
封装 TO-247-3
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
