F426JF102J100C

1nF ±5% 100V 6.5mm

PHE426/F426, Film, Metallized Polypropylene, Commercial Grade, General Purpose, 1000 pF, 5%, 100 VDC, 85C, Lead Spacing = 5mm

艾睿:

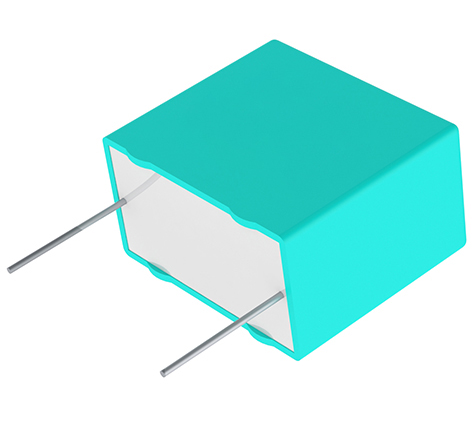

This pulse F426JF102J100C film capacitor from Kemet is ideal for voltage smoothing, and would make any filter or audio based design better for the smoothest signal. It can withstand a voltage of 100 VDC|63VAC. This part has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.5 mm and a pitch of 5 mm. The F426JF102J100C part has a radial termination style. It has a tolerance of 5%. This product is 7.2Max mm long, 6.5Max mm tall and 2.5Max mm deep. Its capacitance value is 0.001uF.

Verical:
Cap Film 0.001uF 100V PP 5% 7.2 X 2.5 X 6.5mm Radial 5mm 105C Bulk
