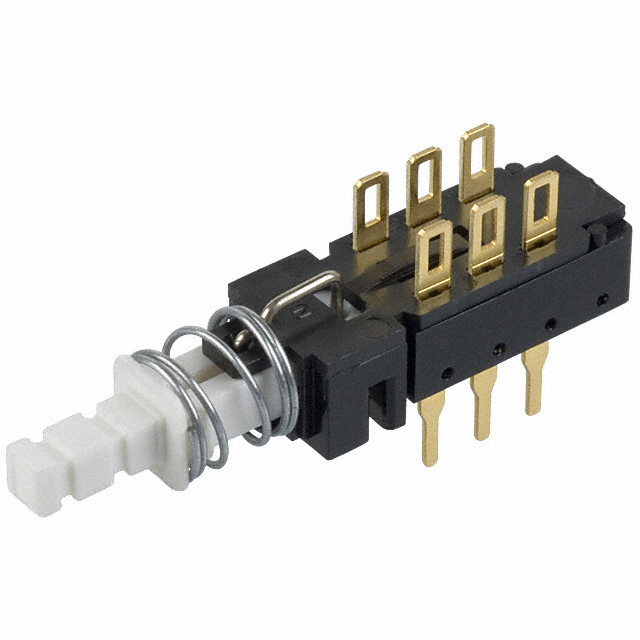

Switch Push Button DPDT Plunger 0.04A 50VAC 50VDC 1VA Alternate Contact Solder Lug/PC Pins Panel Mount/Through Hole
Ideal for quick switching situations this push button switch manufactured from C&K Components is a must. This device has a maximum current rating of 0.04. It has a DPDT configuration. This push switch has a minimum operating temperature of -40 °C and a maximum of 70 °C. The F2UEEAU push switch has a solder lug/PC pin termination style. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 50 VDC. This product is 42.4 mm long, 14.5 mm tall and 9.8 mm deep.
触点电镀 Gold
额定电压DC 30 V
额定电压AC 50 V
额定电流 10mA, 40mA
排数 2
额定功率 1 VA
方向 Right Angle
触点类型 DPDT
额定电流Max 0.04 A
额定功率Max 1 VA
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压DC Max 50 V
额定电压AC Max 50 V
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 24.0 mm
宽度 10.5 mm
高度 14.5 mm
工作温度 -40℃ ~ 70℃
产品生命周期 100000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509033
