FAN5361UMP15X

降压调节器，同步（集成开关），Fairchild Semiconductor### 非隔离直流/直流转换器，Fairchild Semiconductor

Description

The FAN5361 is a 600mA, step-down, switching voltage regulator that delivers a fixed output from an input voltage supply of 2.3V to 5.5V. Using a proprietary architecture with synchronous rectification, the FAN5361 is capable of delivering a peak efficiency of 92%, while maintaining efficiency over 80% at load currents as low as 1mA.

Features

 6MHz Fixed-Frequency Operation

 35µA Typical Quiescent Current

 Best-in-Class Load Transient

 600mA Output Current Capability

 2.3V to 5.5V Input Voltage Range

 1.0 to 1.82V Fixed Output Voltage

 Low Ripple Light-Load PFM Mode

 Forced PWM and External Clock Synchronization

 Internal Soft-Start

 Input Under-Voltage Lockout UVLO

 Thermal Shutdown and Overload Protection

 6-bump WLCSP, 0.4mm Pitch

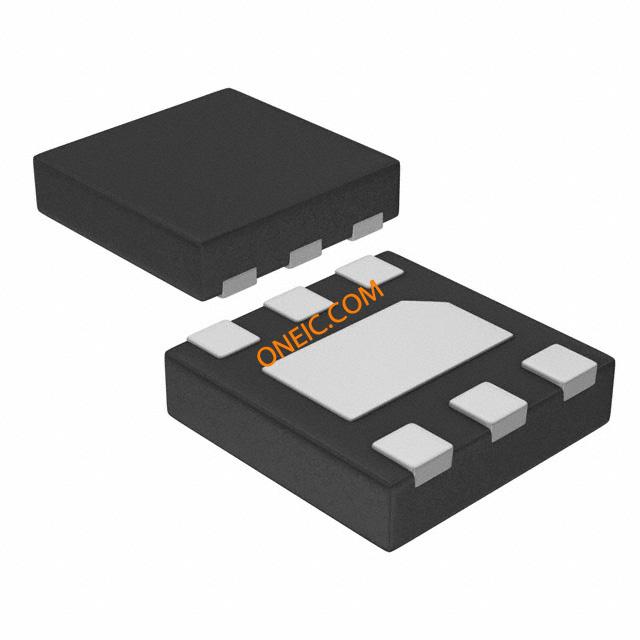

 6-pin 2 x 2mm UMLP

Applications

 Cell Phones

 Portable Media Players

 WLAN, 3G, and 4G Data Cards
