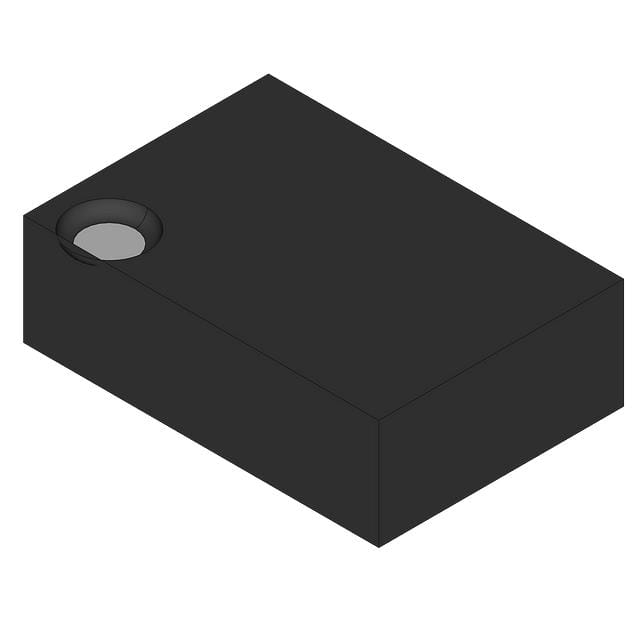

FPF1015

的IntelliMAX 1V额定先进的负载管理产品 IntelliMAX 1V Rated Advanced Load Management Products

General Description

The /6/7/8 series is an IntelliMAX advanced slew rate loadswitch offering a very low operating voltage. These devices consist of a 34mΩN-channel MOSFET that supports an input voltage up to 2.0V. These slew rate devices control the switch turn-on and prevent excessive in-rush current from the supply rails. The input voltage range operates from 0.8V to 1.8V to fulfill today"s lowest Ultraportable Device"s supply requirements. Switch control is via a logic input ON capable of interfacing directly with low voltage control signals.

Features

„0.8 to 1.8V Input Voltage Range

„Typical RDSON= 34mΩ @ VON- VIN= 2.0V

„Output Discharge Function

„Internal Pull down at ON Pin

„Accurate Slew Rate Controlled Turn-on time

„Low < 1µA Quiescent Current

„ESD Protected, above 8000V HBM, 2000V CDM

„RoHS Compliant

„Free from Halogenated Compounds and Antimony Oxides

Applications

„PDAs

„Cell Phones

„GPS Devices

„MP3 Players

„Digital Cameras

„Notebook Computers
