Fairchild Semiconductor### 高级负载开关，Fairchild Semiconductor
Abnormal current spikes are no longer an issue with this load switch from Semiconductor. This current limited load switch"s single output can produce a current up to 0.2 A. Using the part will provide the power your application needs by requiring a voltage only of 1.8 V and not exceeding a voltage of 5.5 V. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This current limited load switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.00 V
工作电压 5.50V max
额定功率 667 mW
输出接口数 1
输入电压DC 5.50 V
输出电压 ≤6.00 V
输出电流 0.2 A
漏源极电阻 125 mΩ
极性 P-Channel
耗散功率 667 mW
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电流Max 200 mA
输出电流Min 0.2 A
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 667 mW
电源电压Max 5.5 V
电源电压Min 1.8 V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount

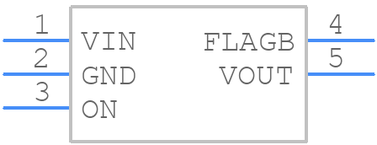

引脚数 5

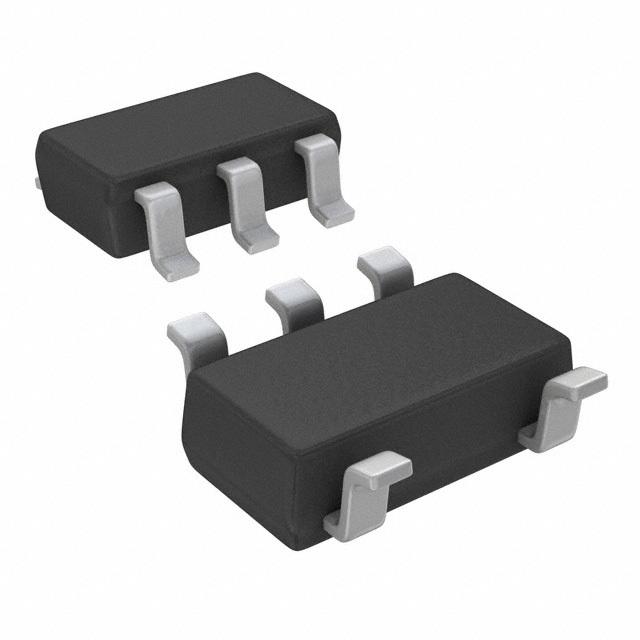

封装 SOT-23-5
长度 3 mm
宽度 1.7 mm
高度 1.25 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
