Fairchild Semiconductor### 高级负载开关，Fairchild Semiconductor
Making sure you system does not receive any surges of current, this load switch made by Semiconductor will keep your system safe. This current limited load switch"s single output can produce a current up to 0.4 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This current limited load switch has an operating temperature range of -40 °C to 85 °C.
电源电压DC 5.00 V
额定功率 667 mW
输出接口数 1
输入电压DC 5.50 V
输出电压 ≤6.00 V
输出电流 0.4 A
漏源极电阻 125 mΩ
极性 P-Channel
耗散功率 0.667 W
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电流Max 400 mA
输出电流Min 0.4 A
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 667 mW
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5

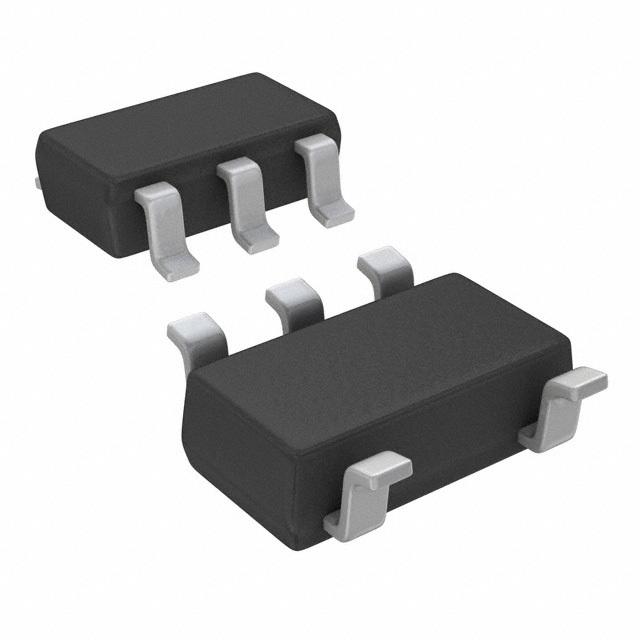

封装 SOT-23-5
长度 3 mm
宽度 1.7 mm
高度 1.25 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FPF2105 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
AP2151WG-7 美台 | 功能相似 | FPF2105和AP2151WG-7的区别 |
FPF2104 安森美 | 功能相似 | FPF2105和FPF2104的区别 |
FPF2106 安森美 | 功能相似 | FPF2105和FPF2106的区别 |
