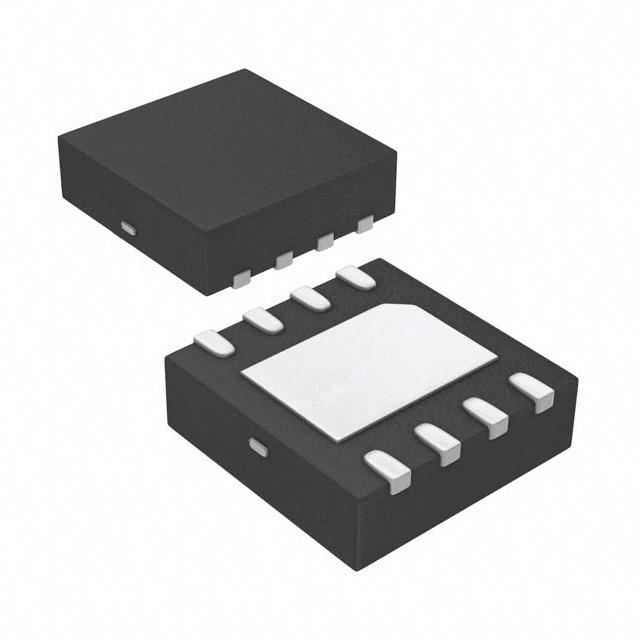

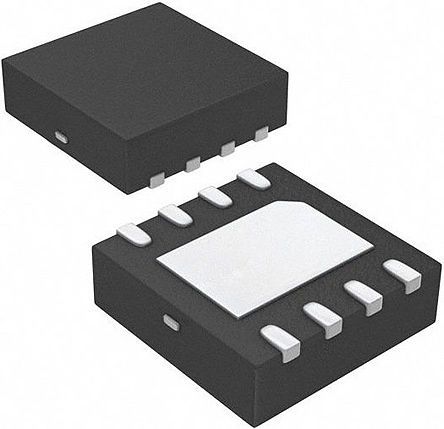

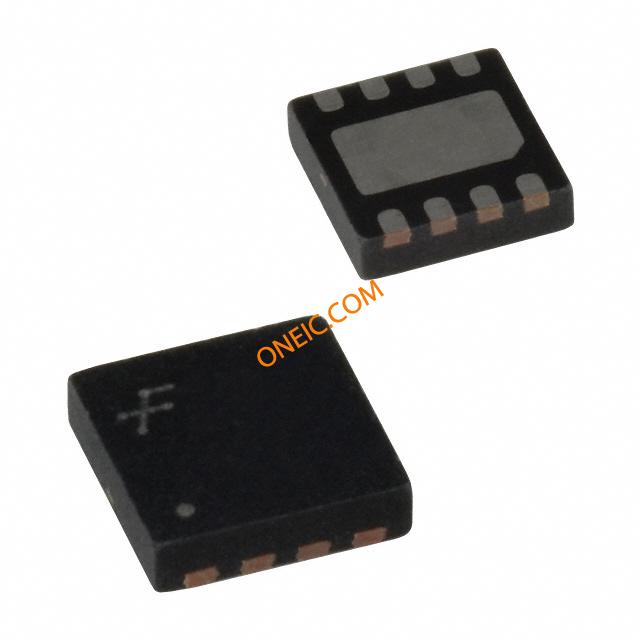

FAIRCHILD SEMICONDUCTOR FAN3227TMPX 芯片, MOSFET驱动器, 双路, 2A, TTL, 8MLP
Use the power driver from Semiconductor for fast switching. This device has a maximum propagation delay time of 34 ns. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 4.50V min
上升/下降时间 12ns, 9ns
输出接口数 2
输出电流 3 A
供电电流 1.2 mA
针脚数 8
上升时间 12 ns
下降时间 9 ns
下降时间Max 17 ns
上升时间Max 22 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8
封装 MLP-8
长度 3 mm
宽度 3 mm
高度 0.75 mm
封装 MLP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
