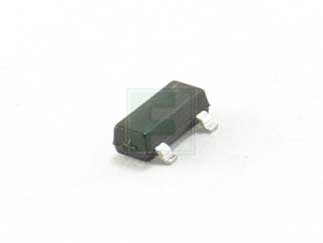

Fairchild Semiconductor### 高级负载开关，Fairchild Semiconductor
It"s simple to protect your circuit against harmful unwanted spikes in current by using this load switch from Semiconductor. This current limited load switch"s single output can produce a current up to 1 A. By only needing an input voltage of 1.8 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This current limited load switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.00 V
工作电压 5.50V max
额定功率 0.667 W
输出接口数 1
输出电压 ≤6.00 V
输出电流 1 A
漏源极电阻 125 mΩ
极性 P-Channel
耗散功率 0.667 W
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电流Max 1.5 A
输出电流Min 0.6 A
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 667 mW
电源电压Max 5.5 V
电源电压Min 1.8 V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 5

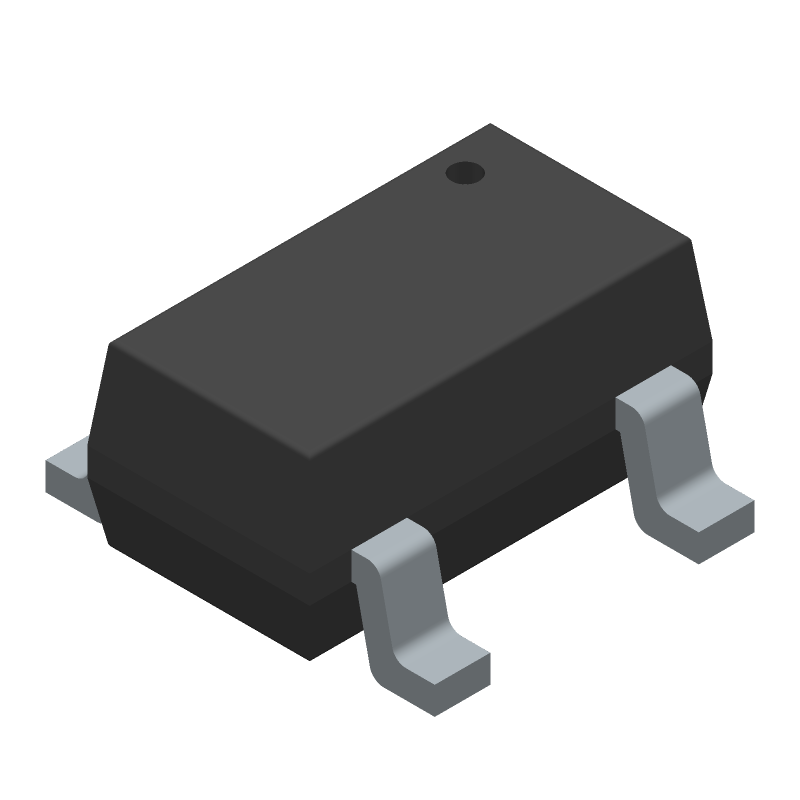

封装 SOT-23-5
长度 3 mm
宽度 1.7 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
FPF2125 Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FPF2123 飞兆/仙童 | 完全替代 | FPF2125和FPF2123的区别 |
FPF2124 飞兆/仙童 | 完全替代 | FPF2125和FPF2124的区别 |
