PWM 控制器,Fairchild Semiconductor### 离线和隔离直流-直流控制器,Fairchild Semiconductor回扫控制器、线路电平控制 LLC 控制器和初级侧调节控制器显著节能,以满足开关模式电源 SMPS 设计的需要。 所有控制器随附集成软启动和过压、开口反馈、过载、输出短路、过电流、电压中断和欠压闭锁功能。
Never worry about wrong components during on in a high voltage system with this power switch by Semiconductor. This charge controller has single output. It features 2.1 Ohm switch on resistance. This device has a maximum power dissipation of 45000 mW. Its maximum power dissipation is 45000 mW. This device has a supply current of 1.6 mA and a minimum output current of 1.64 A. This product comes in rail packaging to keep individual parts separated and protected. This charge controller has an operating temperature range of -40 °C to 125 °C.
额定功率 70 W
输出接口数 1
输出电流 1.64 A
击穿电压 650 V
供电电流 1.6 mA
耗散功率 45 W
开关频率 66 kHz
占空比 70 %
输出电流Min 1.64 A
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 45000 mW
输入电压 7.5V ~ 26V
安装方式 Through Hole
引脚数 6

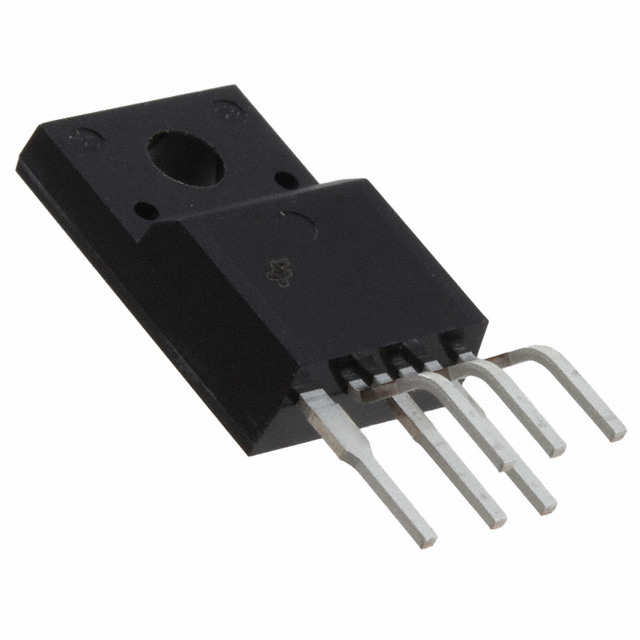

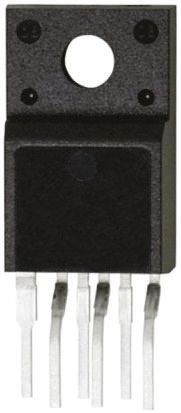

封装 TO-220-6
长度 10.16 mm
宽度 4.8 mm
高度 16.07 mm
封装 TO-220-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
