MOSFET & IGBT 驱动器，Fairchild Semiconductor
Transistors are never going away, implement this power driver by Semiconductor in order to help turn on and off the transistor. This device has a maximum propagation delay time of 35 ns. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device has a minimum operating supply voltage of 4.5 V and a maximum of 18 V. This gate driver has an operating temperature range of -40 °C to 125 °C.
电源电压DC 4.50V min
上升/下降时间 23ns, 19ns
输出接口数 1
输出电流 9.7 A
耗散功率 0.396 W
上升时间 23 ns
下降时间 19 ns
下降时间Max 27 ns
上升时间Max 29 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 18V
电源电压Max 18 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

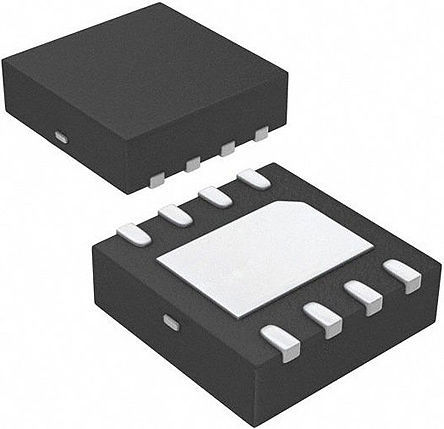

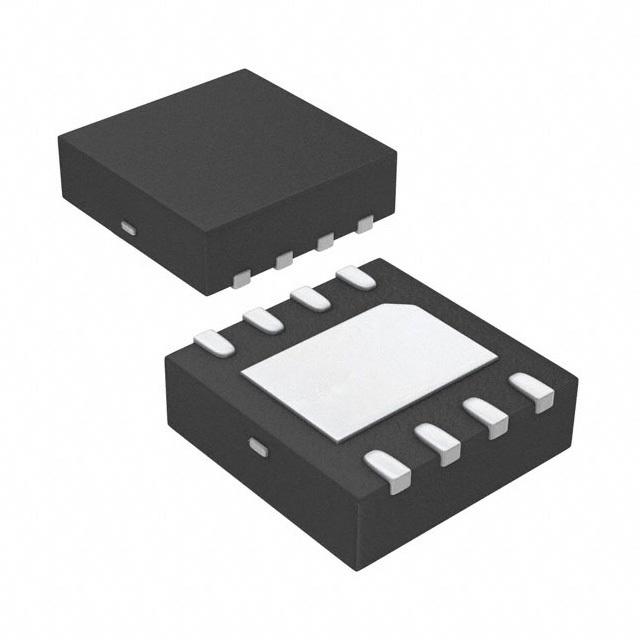

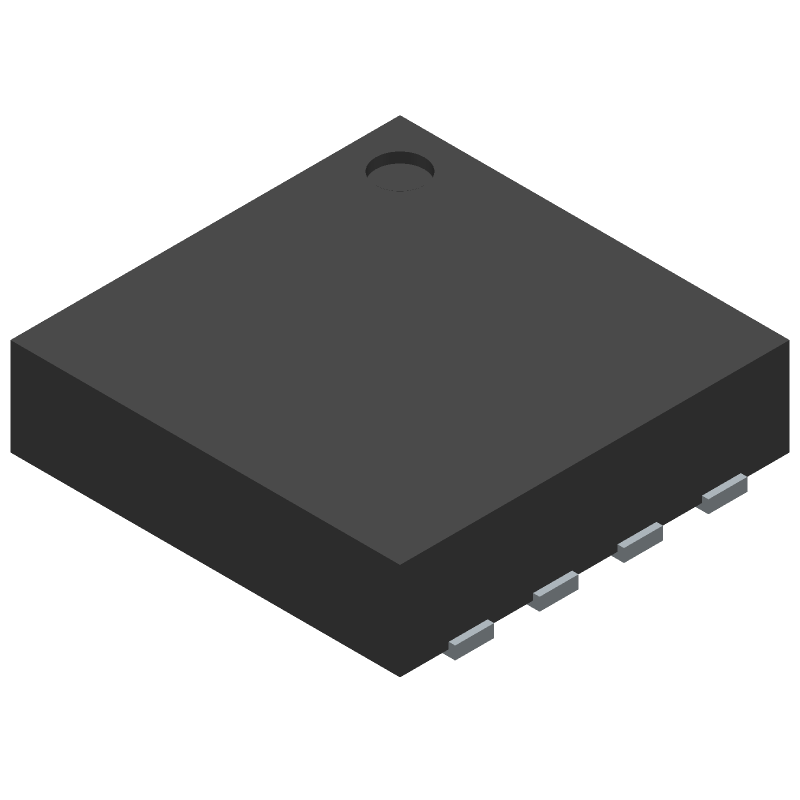

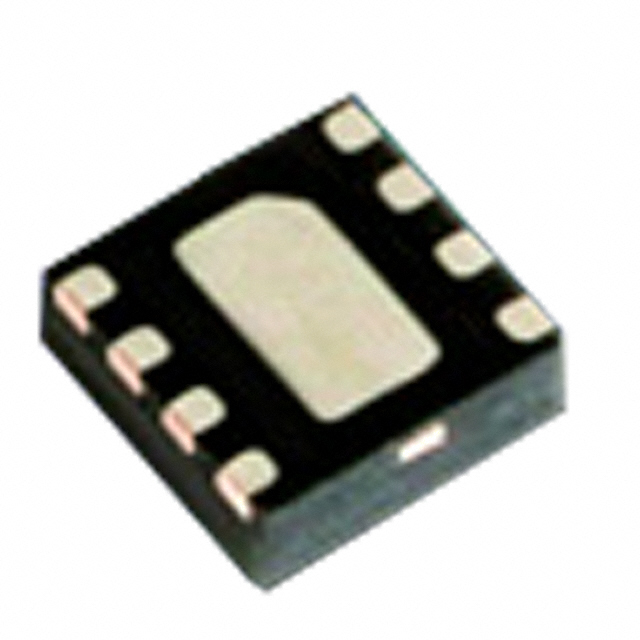

封装 MLP-8
长度 3 mm
宽度 3 mm
高度 0.75 mm
封装 MLP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
