PWM 控制器,Fairchild Semiconductor### 离线和隔离直流-直流控制器,Fairchild Semiconductor回扫控制器、线路电平控制 LLC 控制器和初级侧调节控制器显著节能,以满足开关模式电源 SMPS 设计的需要。 所有控制器随附集成软启动和过压、开口反馈、过载、输出短路、过电流、电压中断和欠压闭锁功能。
Manually change states with this power switch by Semiconductor. This charge controller has single output. This charge controller has an input voltage of 20Max V. This device has a maximum power dissipation of 45000 mW. It features 1.3 Ohm switch on resistance. This device has a supply current of 3 mA and a minimum output current of 3.6Max A. Its maximum power dissipation is 45000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has an operating temperature range of -25 °C to 85 °C.
额定功率 90 W
输出接口数 1
击穿电压 650 V
供电电流 3 mA
耗散功率 45000 mW
开关频率 48kHz ~ 67kHz
输出电流Min 2.2 A
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 45000 mW
输入电压 9V ~ 20V
安装方式 Surface Mount
引脚数 6

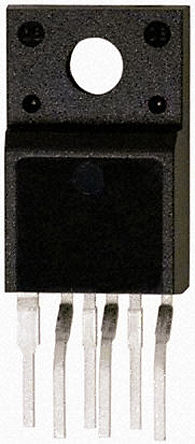

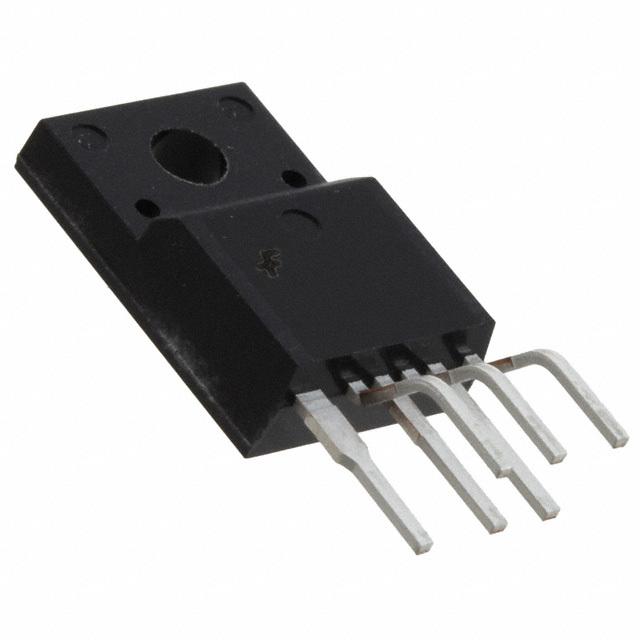

封装 TO-220F-6
长度 10.16 mm
宽度 4.8 mm
高度 16.07 mm
封装 TO-220F-6
工作温度 -25℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
