PWM 控制器,Fairchild Semiconductor### 离线和隔离直流-直流控制器,Fairchild Semiconductor回扫控制器、线路电平控制 LLC 控制器和初级侧调节控制器显著节能,以满足开关模式电源 SMPS 设计的需要。 所有控制器随附集成软启动和过压、开口反馈、过载、输出短路、过电流、电压中断和欠压闭锁功能。
Protect your circuit from surges with the power switch, developed by Semiconductor. This charge controller has single output. This device has a maximum power dissipation of 49000 mW. This charge controller has an input voltage of -0.3 to 20 V. It features 1 Ohm switch on resistance. Its maximum power dissipation is 49000 mW. This device has a supply current of 6 mA and a minimum output current of 5.28 A. This product comes in rail packaging to keep individual parts separated and protected. This charge controller has a minimum operating temperature of -25 °C and a maximum of 85 °C.
额定功率 130 W
输出接口数 1
输出电流 5.28 A
击穿电压 650 V
供电电流 6 mA
耗散功率 49 W
开关频率 20 kHz
占空比 95 %
输出电流Min 5.28 A
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 49000 mW
输入电压 9V ~ 20V
安装方式 Through Hole
引脚数 5

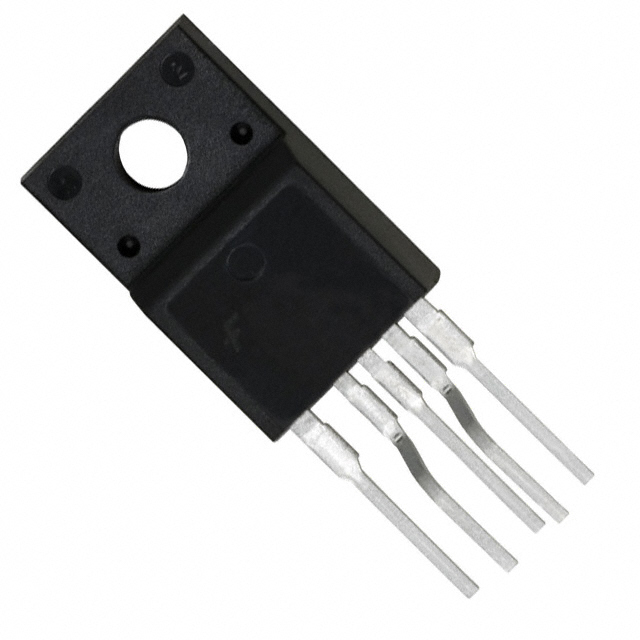

封装 TO-220-5
长度 10.16 mm
宽度 4.7 mm
高度 9.19 mm
封装 TO-220-5
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
