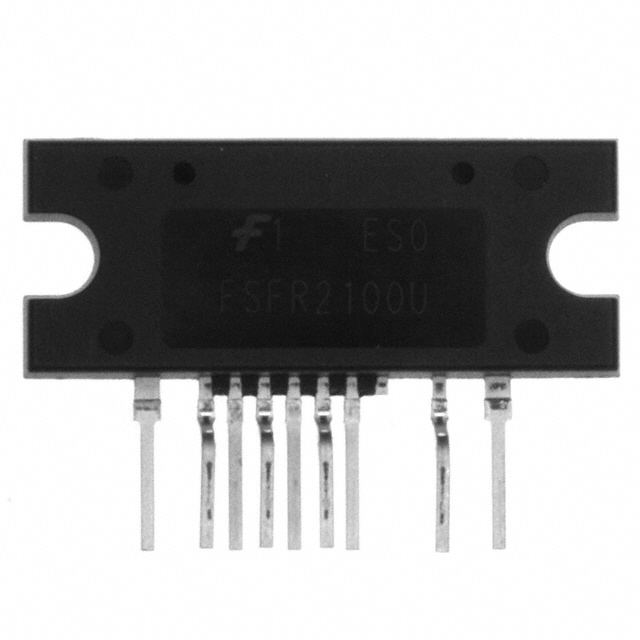

FSFR1700

电源开关（ FPS⑩ ）的半桥谐振转换器 Power Switch FPS⑩ for Half-Bridge Resonant Converters

Description

The FSFR-series are a highly integrated power switches designed for high-efficiency half-bridge resonant converters. Offering everything necessary to build a reliable and robust resonant converter, the FSFR-series simplifies designs and improves productivity, while improving performance. The FSFR-series combines power MOSFETs with fast-recovery type body diodes, a high-side gate-drive circuit, an accurate current controlled oscillator, frequency limit circuit, soft-start, and built-in protection functions.

Features

Variable Frequency Control with 50% Duty Cycle for Half-bridge Resonant Converter Topology

High Efficiency through Zero Voltage Switching ZVS

Internal SuperFET™s with Fast-Recovery Type Body Diode trr=120ns for FSFR2100 and UniFETs with Fast-Recovery Type Body Diode trr<160ns for FSFR2000/1900/1800/1700.

Fixed Dead Time 350ns Optimized for MOSFETs

Up to 300kHz Operating Frequency

Pulse Skipping for Frequency Limit Programmable at Light-Load Condition

Remote On/Off Control Using Control Pin

Protection Functions: Over-Voltage Protection OVP, Over-Load Protection OLP, Over-Current Protection OCP, Abnormal Over-Current Protection AOCP, Internal Thermal Shutdown TSD

Applications

PDP and LCD TVs

Desktop PCs and servers

Adapters

Telecom Power Supplies

Audio Power Supplies
