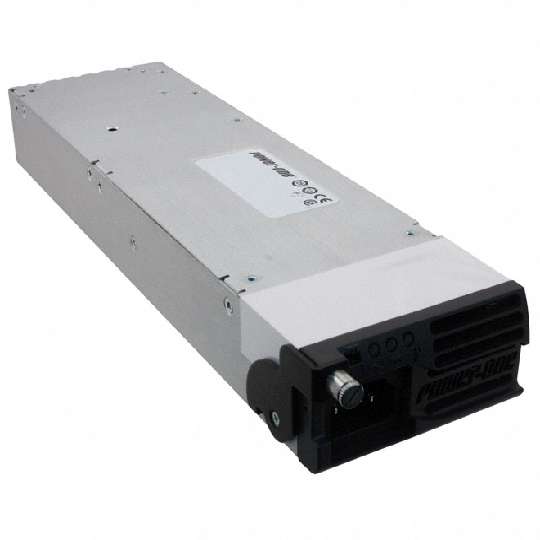

600W to 1000W, Universal Input, Rack Mount Front Ends
Front End power supplies with digital control
IC interface for status monitoring, power supply enable and fan speed control
1U or 2U height configurations orientation dependant
High power density design
Highly efficient topology
12V/0.5A standby output
Power factor correction to EN 61000-3-2
EMC meets EN 55022/CISPR 22 Class B conducted and Class A radiated
Over-current, over-voltage and over-temperature protection
Supervisory signalling
Droop current share with ORing FETs
Internal fan cooling
Status LEDs
3 pin IEC320 input connector
For GUI software refer to www.power-one.com & enter "FNP" in the site search
### 认可
TUV, CSA, UL recognised
### 标准
EN 60950-1, UL 60950, CSA-C22.2 No. 60950-00
额定功率 850 W
输出接口数 1
输出电压 12 V
输出电流 73 A
输出功率 856 W
隔离电压 4 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 73 A
输入电流Min 14 Arms
输出功率Max 850 W
额定功率Max 850 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 90VAC ~ 264VAC
安装方式 Rack
长度 11.75 in
宽度 3.3 in
高度 1.6 in
重量 1 kg
工作温度 0℃ ~ 70℃
产品生命周期 Active
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409540
