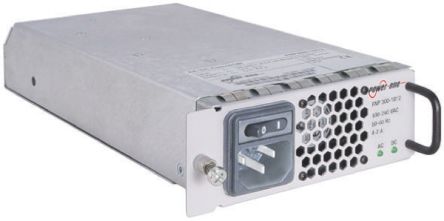

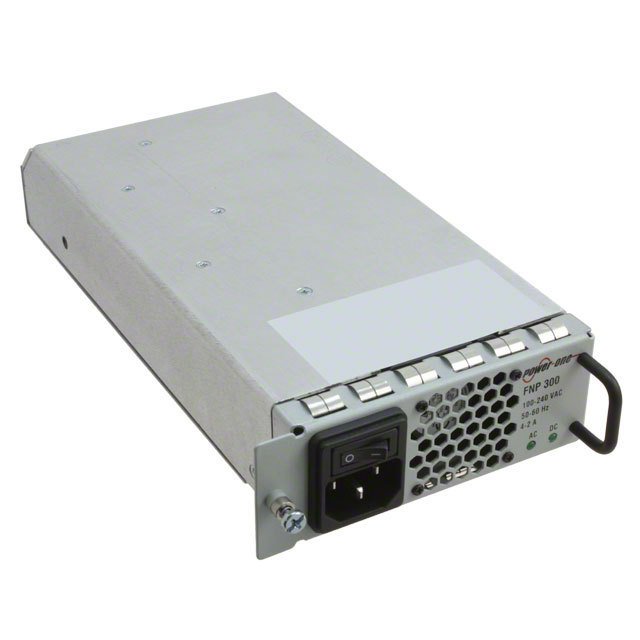

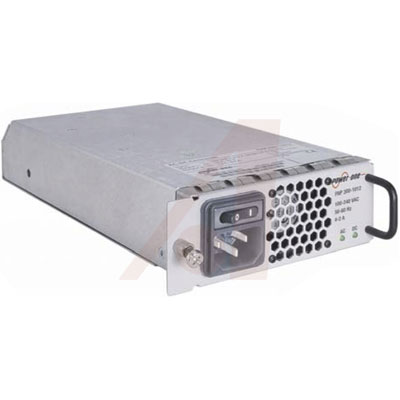

300W, Universal Input, Rack Mount Front Ends
Front End power supplies with digital control
IC interface for status monitoring, power supply enable and fan speed control
4x1.65x8.5" cassette
High power density design
Highly efficient topology
12V/0.7A standby output
Power factor correction to EN 61000-3-2
EMC meets EN 55022 Class B, CISPR 22 Class B radiated and conducted
Over-current, over-voltage and over-temperature protection
Supervisory signalling
OR-ing diode for true redundant operation
Internal fan cooling
Status LEDs
3 pin IEC320 input connector
For GUI software refer to www.power-one.com & enter "FNP" in the site search
### 认可
TUV, UL recognised
### 标准
EN 60950-1, UL 60950, CSA-C22.2 No. 60950-00
额定功率 300 W
输出接口数 2
输出电流 6.25A, 700mA
输出功率 310 W
隔离电压 4 kV
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 6.25A, 700mA
输出功率Max 310 W
额定功率Max 300 W
工作温度Max 55 ℃
工作温度Min 0 ℃
输入电压 85VAC ~ 264VAC
长度 215.9 mm
宽度 101.6 mm
高度 4 in
重量 1 kg
工作温度 0℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
