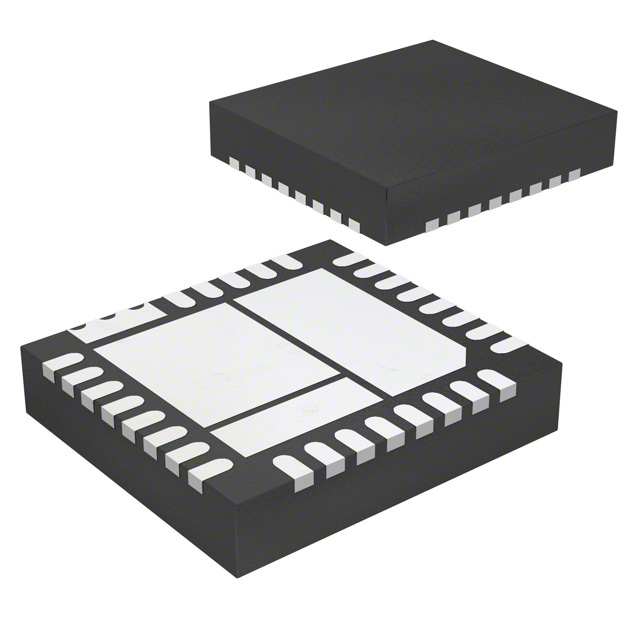

FAIRCHILD SEMICONDUCTOR FAN2306MAMPX 芯片, 直流/直流转换器, 同步降压, 1.5MHZ, PQFN-34 新
Adjust the voltage level of your devices with this DC to DC converter from Semiconductor. This converter"s 2.1pF outputs can produce a current up to 250VDC A. With a 1.45max output that has a voltage of 0.1pF V and maximum output power of Flat W, this is power management at its best. This device has a typical switch current of 0.05 A. A load regulation of 2 and line regulation of 1.25 is necessary for providing a constant voltage level at your output. You can operate this at a switching frequency of Surface Mount kHz. This converter has a minimum operating temperature of -55 °C and a maximum of 200 °C.
输出接口数 1
输出电压 0.6V ~ 5.5V
输出电流 6 A
针脚数 34
开关频率 1.5 MHz
输入电压Max 18 V
输入电压Min 4.5 V
输出电压Max 5.5 V
输出电压Min 600 mV
输出电流Max 6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 34
封装 PowerTFQFN-34
高度 1.03 mm
封装 PowerTFQFN-34
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FAN2306MAMPX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
FAN2306MMPX 飞兆/仙童 | 类似代替 | FAN2306MAMPX和FAN2306MMPX的区别 |
