FITFAB-4 BK004概述

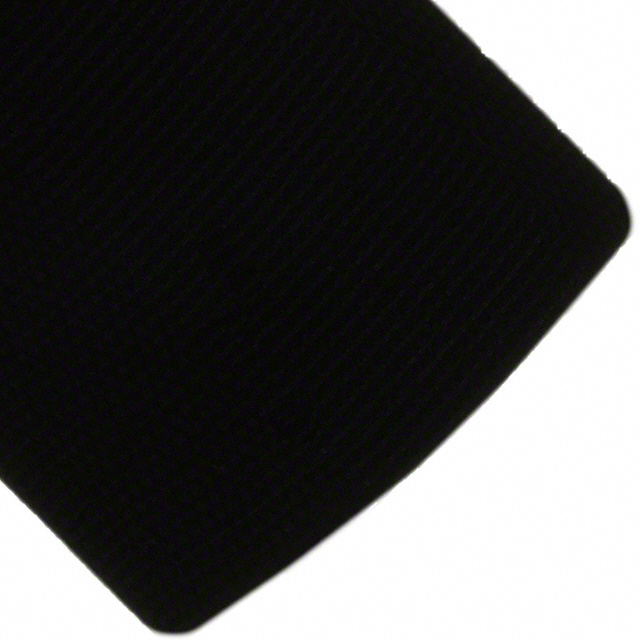

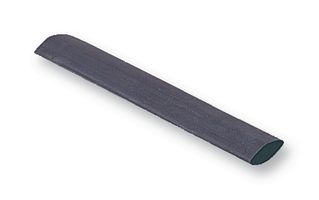

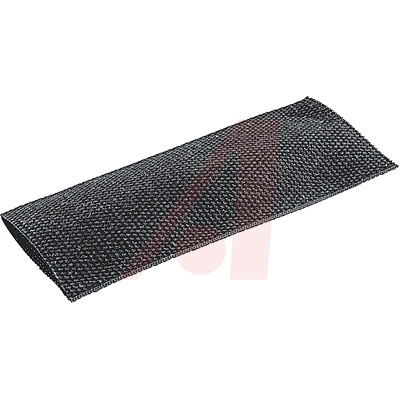

热收缩管和套管 WOVEN FABRIC TUBING 200ft SPOOL BLACK

Heat Shrinkable Woven Fabric Tubing, 2 to 1 Shrink Ratio, Highly Flexible

Offers superior abrasion resistance over a wide temperature range with excellent flexibility and durability. Cuts with scissors. Easy to install as well as soft, safe handling.
.
* Operating Temperature:** –40°C to 125°C. ** Shrink Ratio:** 2 to 1 or 3 to 1 at 135°C depending on size. ** Color:** Black. Non-corrosive. Fungus resistant. Chemical resistant to antifreeze 50% ethylene glycol, engine oil, mineral hydraulic fluid, brake fluid DOT 4, unleaded gas, and diesel fuel. MVSS 302 Horizontal Burn Test.

** Applications**

* Mechanical Abrasion Protection

* Severe Environment Protection

* Noise and Rattle Protection

* Halogen-Free Environment

* Flexing Applications

FITFAB-4 BK004中文资料参数规格
技术参数

工作温度Max 125 ℃

工作温度Min -40 ℃

外形尺寸

长度 200 ft

内径尺寸 1.575 in

物理参数

颜色 Black

材质 Fabric

其他

产品生命周期 Active

包装方式 Coil

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买FITFAB-4 BK004
型号: FITFAB-4 BK004
制造商: Alpha Wire
描述:热收缩管和套管 WOVEN FABRIC TUBING 200ft SPOOL BLACK
替代型号FITFAB-4 BK004
型号/品牌 代替类型 替代型号对比

FITFAB-4 BK004

Alpha Wire

当前型号

当前型号

FITFAB-4 BK007

Alpha Wire

完全替代

FITFAB-4 BK004和FITFAB-4 BK007的区别
