F3211 BK069概述

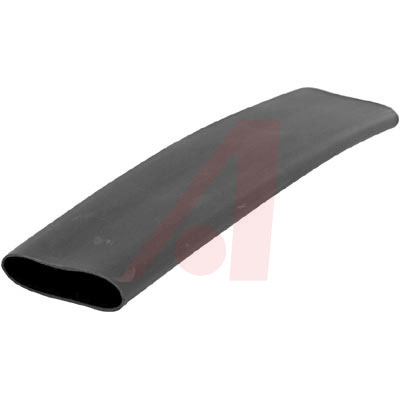

热收缩管和套管 FIT3211 BLACK 8X6 IN

When heated, inner wall melts and fills all crevices and interstices of the covered object while outer wall shrinks. Upon cooling, the entire mass becomes a tough molding that provides excellent environmental protection.
.
* Specifications. Operating Temperature:** -55°C to +110°C. ** Shrink Ratio:** 3:1 at 125°C. ** Tensile Strength:** 2500 psi, nominal. ** Ultimate Elongation:** 400% nominal. ** Longitudinal Shrinkage:** 15%, nominal. MIL-I-23053C/4B Class 3. ** Color:** Black.

* 6" Lengths

* 3:1 Shrink Ratio

* Flame-Retarded Outer Wall

* Water Resistant 0.5% Maximum Absorption

F3211 BK069中文资料参数规格
外形尺寸

长度 152.40 mm

物理参数

颜色 Black

材质 Polyolefin PO

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

在线购买F3211 BK069
型号: F3211 BK069
制造商: Alpha Wire
描述:热收缩管和套管 FIT3211 BLACK 8X6 IN
