FAN431LZXA

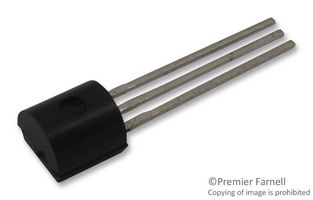

FAIRCHILD SEMICONDUCTOR  FAN431LZXA  电压基准, 分流 - 可调, FAN431A系列, 2.495V至36V, TO-226AA-3

Description

The FAN431/FAN431A/FAN431L are three terminal output adjustable regulators with thermal stability over operating temperature range. The output voltage can be set any value between VREF approximately 2.5 volts and 36 volts with two external resistors. These devices have a typical dynamic output impedance of 0.2Ω. Active output circuit provides a sharp turn-on characteristic, making these devices excellent replacement for Zener Diodes in many applications.

Features

• Programmable Output Voltage to 36 Volts

• Low Dynamic Output Impedance 0.2Ω Typical

• Sink Current Capability of 1.0 to 100mA

• Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical

• Temperature Compensated for Operation Over Full Rated Operating Temperature Range

• Low Output Noise Voltage

• Fast Turn-on Response
