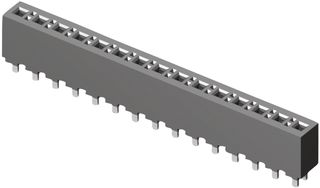

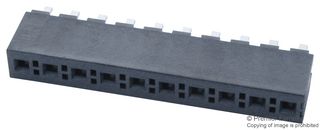

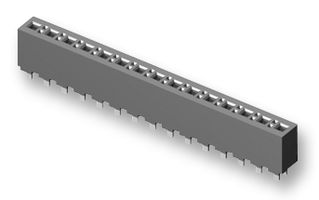

SAMTEC FHP-10-01-T-S 板至板连接, FHP系列, 10 触点, 插座, 3.96 mm, 通孔安装, 1 排
Use this power socket strip power connector from to power up your circuit without having to worry about energy seepage. This SKT connector"s 10 contacts that are made out of beryllium copper and plated with tin over nickel. Its pitch is 3.96 mm. It has a straight body orientation. It has a socket type gender. This connector has a single port. FHP-10-01-T-S is housed in liquid crystal polymer. This device has a maximum current rating of 13.1 A/contact. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 39.6 mm long, 8.89 mm tall and 5.08 mm deep. This power connector has an operating temperature range of -55 °C to 105 °C. Its 10 terminals use the solder termination method.
触点数 10
极性 Female
触点电镀 Tin
排数 1
针脚数 10
额定电流Max 13.1A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 3.96 mm
长度 39.6 mm
宽度 5.08 mm
高度 8.89 mm
引脚间距 3.96 mm
外壳颜色 Black
颜色 Black
触点材质 Beryllium Copper
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
FHP-10-01-T-S Samtec 申泰电子 | 当前型号 | 当前型号 |
FHP-10-01-T-S-TR 申泰电子 | 完全替代 | FHP-10-01-T-S和FHP-10-01-T-S-TR的区别 |
PSS-10-02-T-S-K 申泰电子 | 完全替代 | FHP-10-01-T-S和PSS-10-02-T-S-K的区别 |
