FH52-40S-0.5SH99

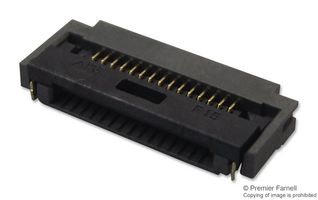

HIROSEHRS  FH52-40S-0.5SH99  连接器, FFC/ FPC板, FH52系列, 40 触点, 插座, 0.5 mm, 表面安装　, 底部

The FH52 series FPC/FFC ZIF Connector with SMT horizontal mounting type termination. The FH52 series has larger metal fittings that extend out from the connector body and enable a visual inspection of its soldering conditions. The flip lock structure makes it easier to engage/disengage the actuator and reduces the required force needed to operate. A clear tactile click is delivered upon the successful completion of the mating process. The side catch technology combined with tabbed FPCs increase the horizontal retention force of the FPC. It accepts 0.3mm thick products that are easy to manufacture and have superb insertion performance. The bottom of this connector is enclosed by a fully moulded structure that protects the contacts and removes any restrictions from PCB patterning and design.

.

Highly reliable connection and robust structure

.

Available with extended metal fittings

.

Simplified operations

.

Increased retention force

.

Fully moulded structure aids PCB layout

.

Halogen-free

.

0.5A Rated current

.

50VAC Rated voltage
