FP-CA-10-AU

AMPOHM WOUND PRODUCTS  FP-CA-10-AU  膜电容, FP-CA-AU系列, 10 µF, ± 5%, PP聚丙烯, 630 V

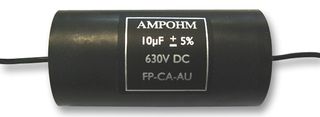

The is an axial leaded polypropylene metallised Film Capacitor for high performance audio systems. The capacitor is hand wound and have their insulated copper leads hand soldered before being assembled in a plastic case and resin sealed. The resin filled end identifies the outer winding. This construction results in the capacitors having low ESR and low inductance and possessing high stability with respect to both temperature and frequency. They are ideal for use in loudspeaker crossover networks and valve amplifiers where pure sound is at a premium.

.

Tension controlled precision hand-winding

.

High quality metalized film

.

Hand-soldered internal connections

.

Insulated copper lead-out

.

High stability with respect to both temperature and frequency

.

Rigid and resilient plastic housing
