FH19C-10S-0.5SH99

连接器, FFC/ FPC板, ZIF, 0.5 mm, 10 触点, 插座, FH19C Series, 表面安装　, 底部

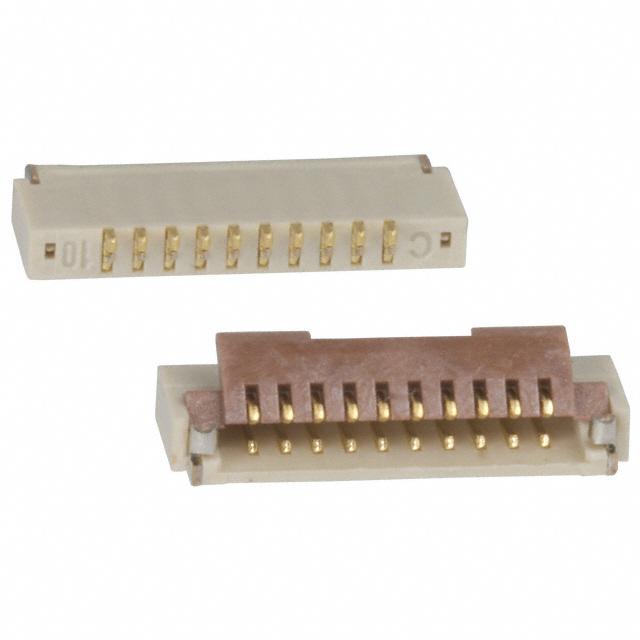

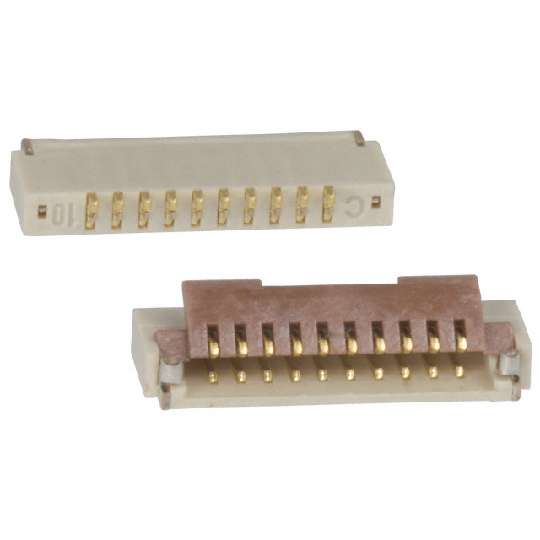

The from HiroseHRS is a low profile 0.5mm pitch FPC/FFC connector in SMT horizontal mounting. The design of this connector has been made thinner and smaller with a height of 0.9mm and width of 3mm. The flexible printed circuit & flexible flat cable ZIF connector reduced approximately 48% of PCB footprint and reduced approximately 78% connector weight as compared with "s 0.5mm pitch FH12 series connectors. The rotating actuator permits easy insertion and reliable connection with the FPC & FFC and tactile sensation confirms complete mechanical locking of the actuator and the electrical connection.

.

Number of contacts is 10

.

LCP insulator

.

Phosphor bronze with gold plated contacts, phosphor bronze with pure tin reflow plated metal fitting

.

Current rating is 0.5A, voltage rating is 50VAC

.

Thickness is 0.2mm

.

Operating temperature range from -55°C to +85°C

.

Minimum insulation resistance is 500Mohm at 100VDC

.

Maximum contact resistance is 100mohm at 1mA

.

Proven flip-lock actuator system assures easy and reliable operation

.

Conductive traces on the PCB can run under the connector
