FN 284-6-06

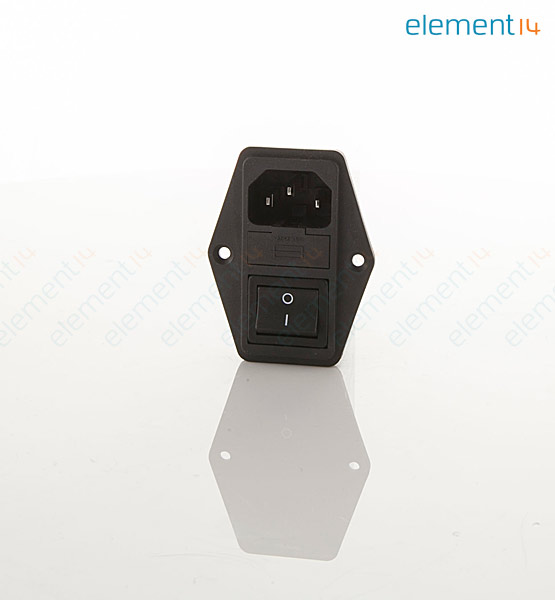

FN 284-6-06图片1
FN 284-6-06图片2
FN 284-6-06图片3
FN 284-6-06图片4
FN 284-6-06概述

SCHAFFNER  FN 284-6-06  电源插座, 带滤波器 6A 双保险丝 水平安装

The is a 2-fuse compact filtered Power Module with quick-connect contact termination. The power module combines an IEC inlet, a mains filter with dual- fuse holder and a 2-pole rocker switch in a small form factor, 6A/250VAC rated. Line brings the rapid availability of a standard filter associated with the necessary safety acceptances. Standard IEC connector filters are a practical solution helping to pass EMI system approval in a short time. High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

.
2-pole rocker switch
.
Flange mounting version left/right, dual-fuse
.
Faston 6.3 x 0.8mm spade/soldering
.
1000kR Resistance
.
IP40 Protection grade
.
UL94 V-2 or better Flammability rating
FN 284-6-06中文资料参数规格
技术参数

极性 Male

额定电压DC 250 V

额定电压AC 250 V

额定电流 6 A

电容 220 nF

额定电流Max 6 A

额定电压 250 V

封装参数

安装方式 Solder, Panel, Quick Connect

外形尺寸

高度 65 mm

物理参数

工作温度 -25℃ ~ 85℃

符合标准

RoHS标准 RoHS Compliant

REACH SVHC标准 No SVHC

数据手册

在线购买FN 284-6-06
型号: FN 284-6-06
制造商: Schaffner
描述:SCHAFFNER  FN 284-6-06  电源插座, 带滤波器 6A 双保险丝 水平安装
替代型号FN 284-6-06
型号/品牌 代替类型 替代型号对比

FN 284-6-06

Schaffner

当前型号

当前型号

FN284-6-06

Schaffner

类似代替

FN 284-6-06和FN284-6-06的区别

SF2032-6/01

上海贝岭

功能相似

FN 284-6-06和SF2032-6/01的区别
