FM686815

CLIFF ELECTRONIC COMPONENTS  FM686815  圆形连接器, Cliffcon 68系列, 插头, 5 触点, 母, 焊接, 电缆安装

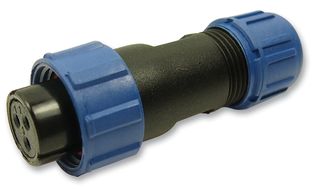

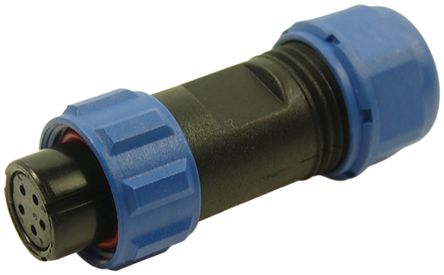

The from Electronic Components is a Cliffcon68 cable mount plug connector with 5 socket contacts. It is IP68 rated multipin connector for waterproof and rugged applications.

.

Rated voltage is 180V and rated current is 5A

.

Plastic shell nylon66, fire resistance V-0 connector material

.

Panel hole cut-out size is 13mm

.

Threaded coupling

.

Contact material is brass with gold plating

.

Solder termination

.

Mating cycle is greater than 500

.

Temperature range from -25°C to +85°C

.

Insulation resistance is 2000Mohm

.

Cable outer diameter is 5mm to 8mm
